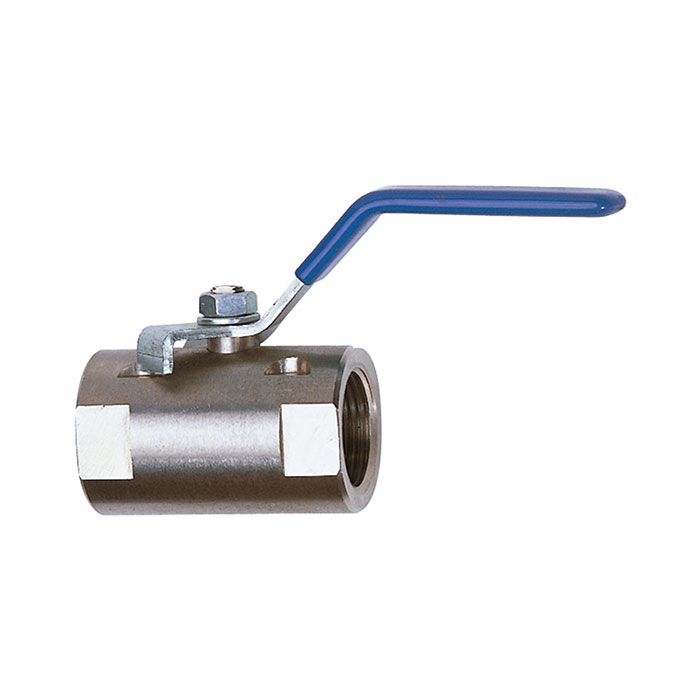

RIEGLER Stainless steel ball valve, 1-piece, Full passage, G 3/8
Typennummer: 398.03
EAN: 4047322082495
Edelstahlkugelhahn 1.4401/1.4408, 1- teilig, voller Durchgang, Betriebstemperatur -20 °C bis 150 °C, G 3/8, DN 10, PN max. 63 bar
| Housing | Stainless steel 1.4401/1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 3/8 |
| DN | 10 |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1 |
| A | 80 mm |
| B | 33 mm |
| L | 44.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
