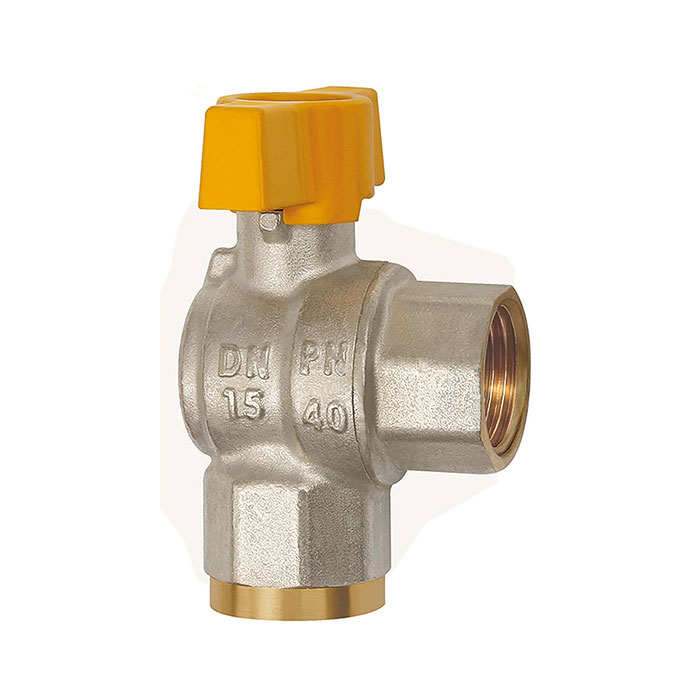

RIEGLER Rectangular ball valve, nickel-plated brass, IT/IT, Rp 1/2
Type number: 350.203
EAN: 4047322075497
Kugelhahn Eckform, EN 331, MS vern., IG/IG, Betriebstemp. -15°C bis 100°C/60°C Gas, Rp 1/2, DN 15, PN max. 40 bar/Gas max. 5 bar
| Housing | Nickel-plated brass |
| Area of application | Gas, compressed air, water, oil |
| Interior parts | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Wing handle | Aluminum, painted yellow |
| Operating pressure | max. 5 bar (MOP 5) gas, max. 40 bar liquids |
| Operating temperature | -15 °C to 60 °C gas, -15 °C to 100 °C liquids |
| DVGW approval | DIN EN 331:2013-05 |
| Thread | Rp 1/2 |
| DN | 15 |
| Thread standard | Rp-Gewinde nach ISO 7-1 |
| A | 47 mm |
| B | 38 mm |
| E | 31 mm |
| F | 33 mm |
| C Ø | 31 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | FLEX |
