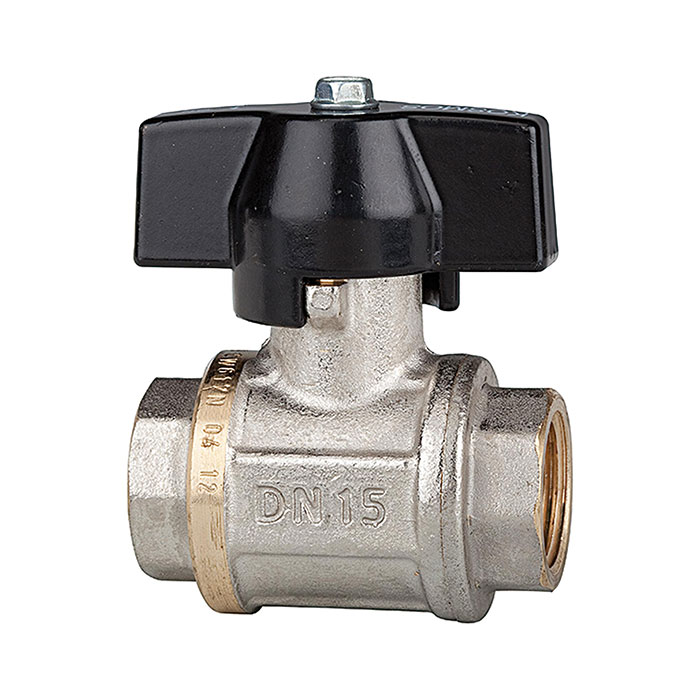

RIEGLER Ball valve heavy duty design, Butterfly handle, IT/IT, G 1/2
Type number: 3340.04
EAN: 4047322216319
Kugelhahn schwere Ausführung, Flügelgriff, IG/IG, Messing vern., Betriebstemp. -20 °C bis 130 °C, G 1/2, DN 15, PN max. 80 bar
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Wing handle | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G 1/2 |
| DN | 15 |
| SW | 26 mm |
| PN | 80 bar |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1 |
| A | 55 mm |
| B | 54.5 mm |
| L | 55 mm |
| E | 9.5 mm |
| F | 9.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | MAX |
