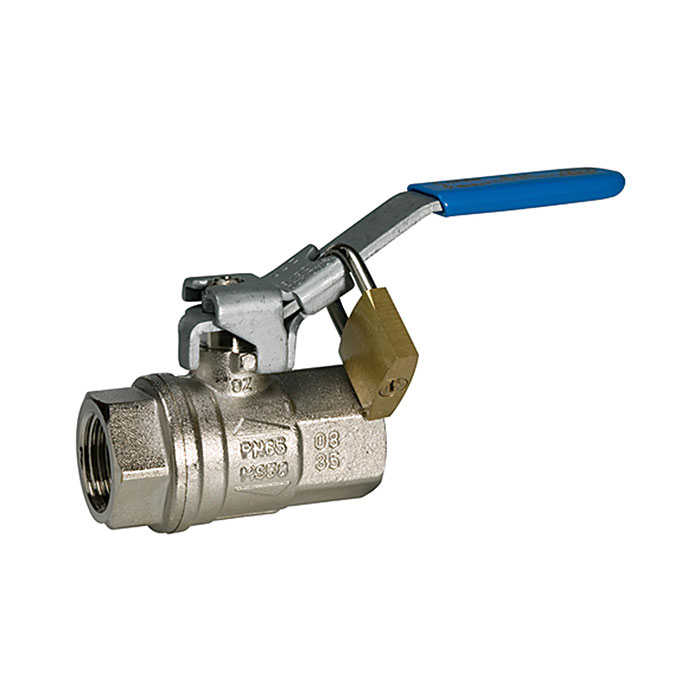

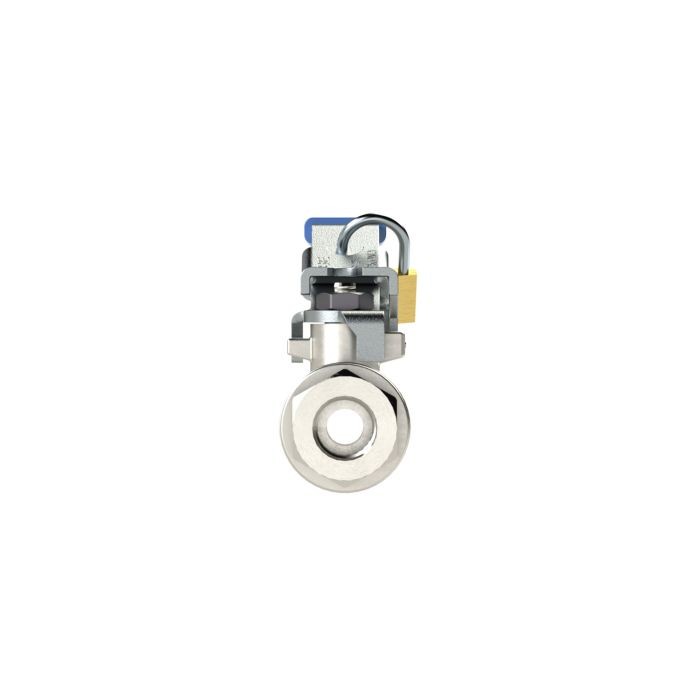

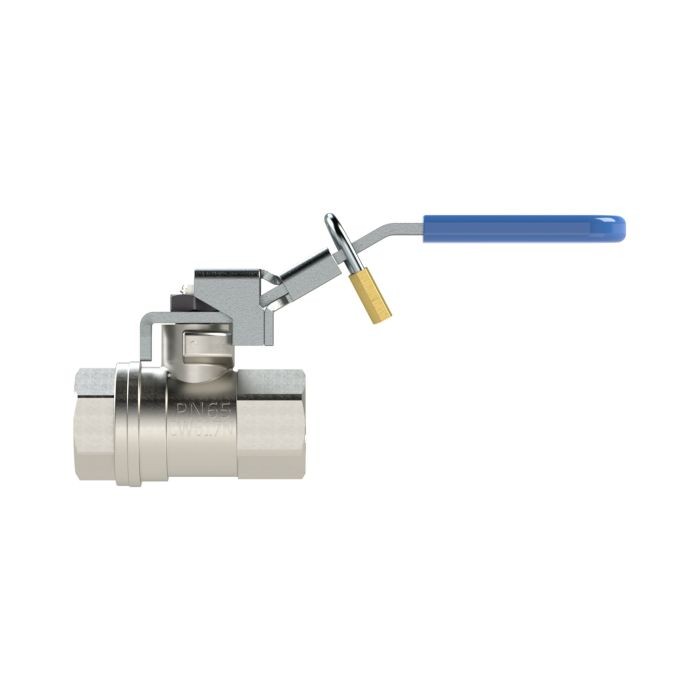

RIEGLER Ball valve, lockable, without venting hole, Rp 1/2
Typennummer: 320.04
EAN: 4047322246835
Kugelhahn, abschließbar, ohne Entlüftungsbohrung, MS vern., Betriebstemp. max. 170°C, Rp 1/2, DN 15, PN max. 65 bar
| Material | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Steel - PVC coated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 170 °C |
| Thread | Rp 1/2 |
| DN | 15 |
| PN | 65 bar |
| Thread standard | Rp-Gewinde nach EN 10226 |

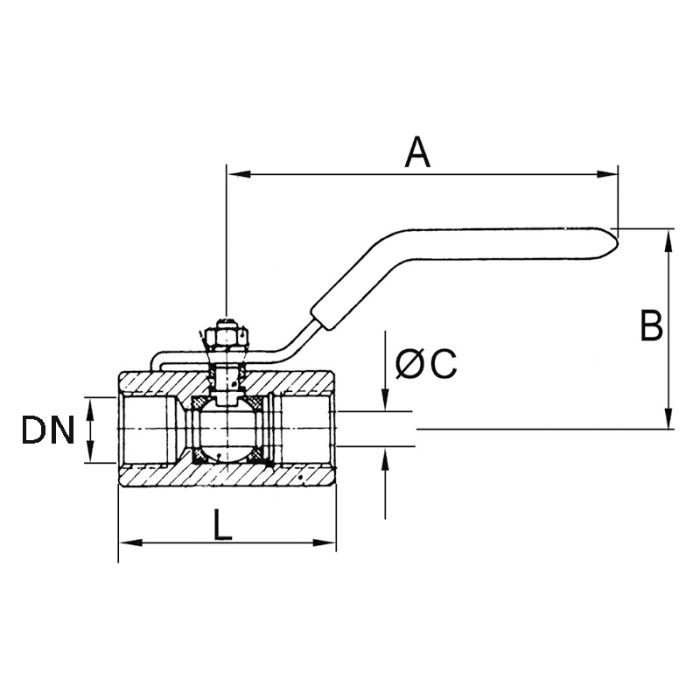

| A | 100 mm |
| B | 43 mm |
| L | 61 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
| Bore diameter padlock | approx. 7.4 mm |
