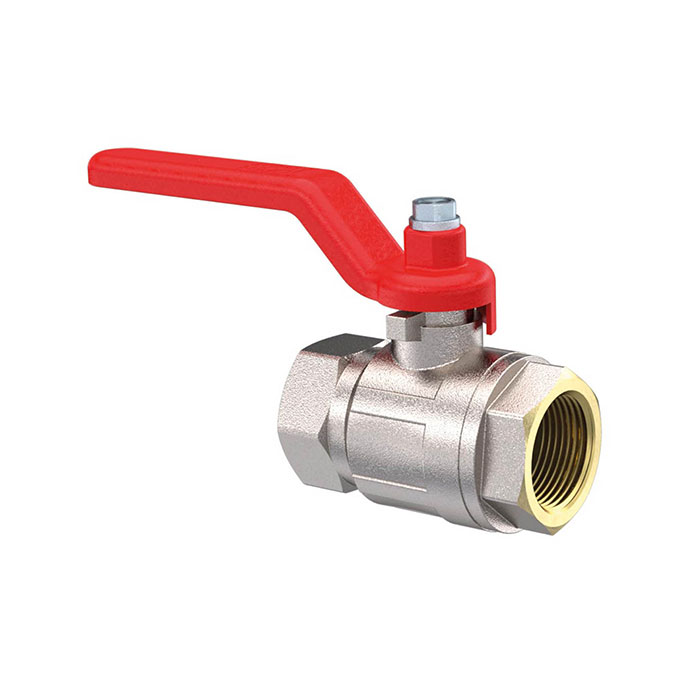

RIEGLER Ball valve, Standard type, IT/IT, nickel-plated brass, G 3/4
Type number: 329.05-R
EAN: 4047322397353
Kugelhahn mit Handhebel, Standardausführung, IG/IG, Messing vern., Betriebstemp. -20 °C bis 150 °C, G 3/4, DN 20, PN max. 40 bar
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR / FKM (Dichtungspaket aus 2 O-Ringen) |
| Hand lever | Galvanized steel, painted red |
| Operating temperature | -20 °C to 150 °C (no steam) |
| Thread | G 3/4 |
| DN | 20 |
| PN | 40 bar |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1, Toleranzklasse B |

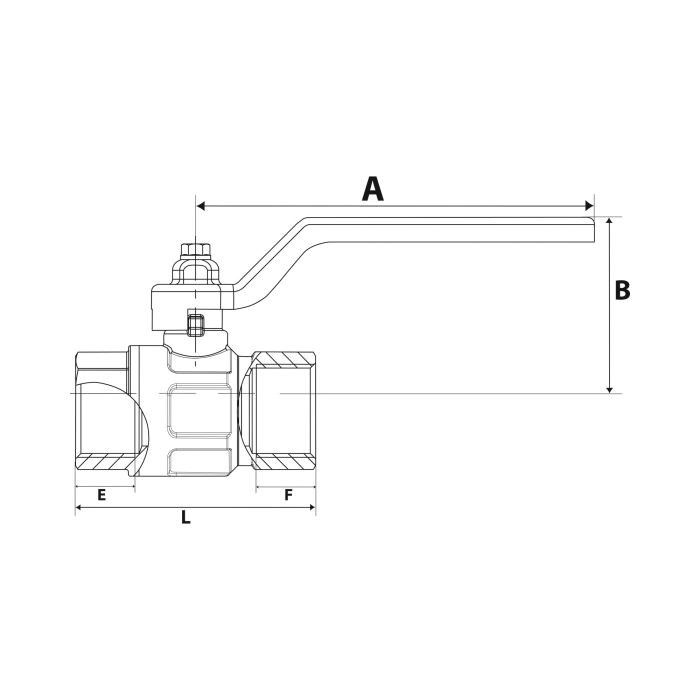

| A | 113 mm |
| B | 55 mm |
| L | 57.5 mm |
| E | 13.5 mm |
| F | 12.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
