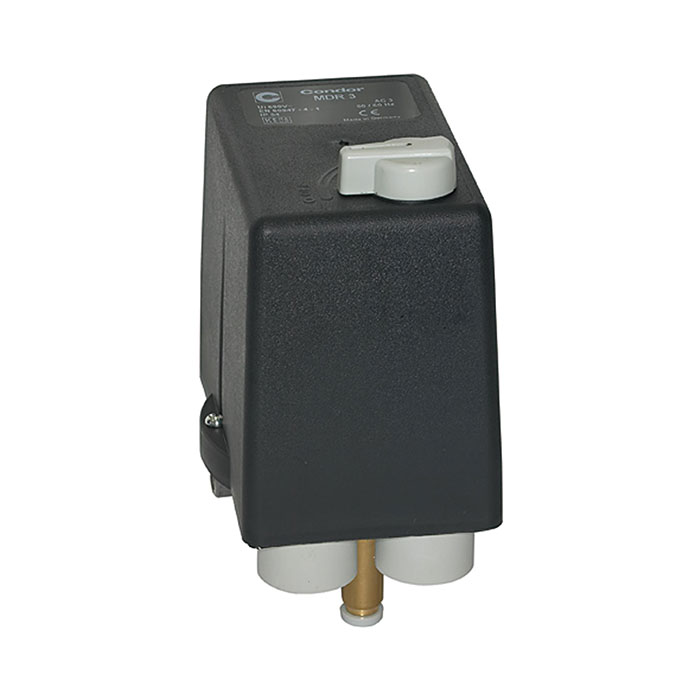

RIEGLER Pressure switch, compressors, Three-phase current design 4-11 bar
Type number: MDR 3/11-10
EAN: 4047322211208
Druckschalter, Kompressoren, Drehstrom, F4 1/2, Mediumstemp. -5 °C bis 80 °C, G 1/2, Einstellbe. 4-11 bar, max. Belastung 6,3-10 A
| Protection class | IP 54 |
| Medium temperature min. | -5 °C |
| Medium temperature max. | 80 °C |
| Switching frequency | max. 120 (electrical), 600 (mechanical) |
| Switching capacity | 7.5 kW |
| Switch-off pressure max. | 12 bar |
| Contact type | Normally closed contact (3-pole) |
| Setting range min. | 4 bar |
| max. load | 6,3 - 10,0 A |
| Execution | Three-phase version |
| Setting range max. | 11 bar |
| Compressed air connection | G 1/2 |
| Class name | PLUS |
