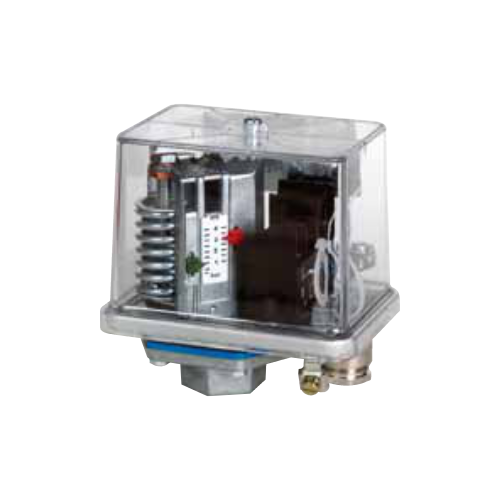

TIVAL Pressure switch FF 4-120 AB PAH 16 - 120 bar 3/8" zinc
max. Betriebsdruck 200 bar
Oberer Schaltpunkt: einstellbar 16 - 120 bar
Unterer Schaltpunkt: einstellbar 8 - 104 bar
TIVAL Sensors
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology.
TIVAL pressure switch FF 4-120 AB PAH Ex 1030139
max. operating pressure 200 bar
with plastic piston and built-in throttle
when using viscous media, this must be removed
ignition protection type IM2 Ex ia I
pressure connection: G 3/8" female thread, die-cast zinc
for mining
with easy-to-read scale for simple adjustment
large connection chamber
high repeat accuracy
approved according to ATEX EN 60079
For further information, see Specifications
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 16 ... 120 |
| Lower switching point adjustable (bar) | 8 ... 104 |
| small pressure difference (bar) | 8 16 |
| Max. Operating pressure (bar) | 200 |
| Max. Test pressure (bar) | 240 |
| Factory setting (bar) | 20 / 80 |
| Pressure connection | G 3/8" zinc |
| Model range - Pressure switch | FF 4 / PAH |
Product variants
| Product | Price | ||
|---|---|---|---|
![[1030136] TIVAL Pressure switch FF 4-16 AB DAH](/web/image/product.template/149344/image_128/%5B1030136%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20AB%20DAH?unique=c8ada37)
|
max. Betriebsdruck 36 bar |
278.27 € | |
![[1030140] TIVAL Pressure switch FF4-250 AB PAH 30 - 250 bar 3/8" zinc](/web/image/product.template/149339/image_128/%5B1030140%5D%20TIVAL%20Pressure%20switch%20FF4-250%20AB%20PAH%2030%20-%20250%20bar%203-8%22%20zinc?unique=4781496)
|
max. Betriebsdruck 400 bar |
487.34 € | |
![[1030133] TIVAL Pressure switch FF 4-2 AB DAH 0,11 - 2 bar 3/8" zinc](/web/image/product.template/149372/image_128/%5B1030133%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20AB%20DAH%200%2C11%20-%202%20bar%203-8%22%20zinc?unique=0d1f254)
|
max. Betriebsdruck 20 bar |
261.88 € | |
![[1030134] TIVAL Pressure switch FF 4-4 AB DAH 0,22 - 4 bar 3/8" zinc](/web/image/product.template/149311/image_128/%5B1030134%5D%20TIVAL%20Pressure%20switch%20FF%204-4%20AB%20DAH%200%2C22%20-%204%20bar%203-8%22%20zinc?unique=c5a34b0)
|
max. Betriebsdruck 24 bar |
264.51 € | |
![[1030138] TIVAL Pressure switch FF4-60 AB PAH 8 - 60 bar 3/8" zinc](/web/image/product.template/149324/image_128/%5B1030138%5D%20TIVAL%20Pressure%20switch%20FF4-60%20AB%20PAH%208%20-%2060%20bar%203-8%22%20zinc?unique=bcc021c)
|
max. Betriebsdruck 100 bar |
422.10 € | |
![[1030135] TIVAL Pressure switch FF 4-8 AB DAH 0,50- 8 bar 3/8" zinc](/web/image/product.template/149322/image_128/%5B1030135%5D%20TIVAL%20Pressure%20switch%20FF%204-8%20AB%20DAH%200%2C50-%208%20bar%203-8%22%20zinc?unique=eb09d02)
|
max. Betriebsdruck 30 bar |
268.56 € | |
