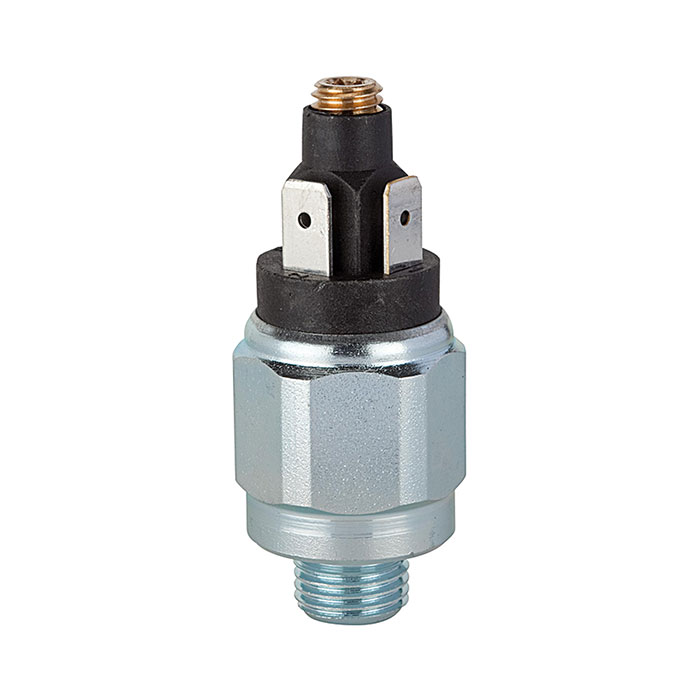

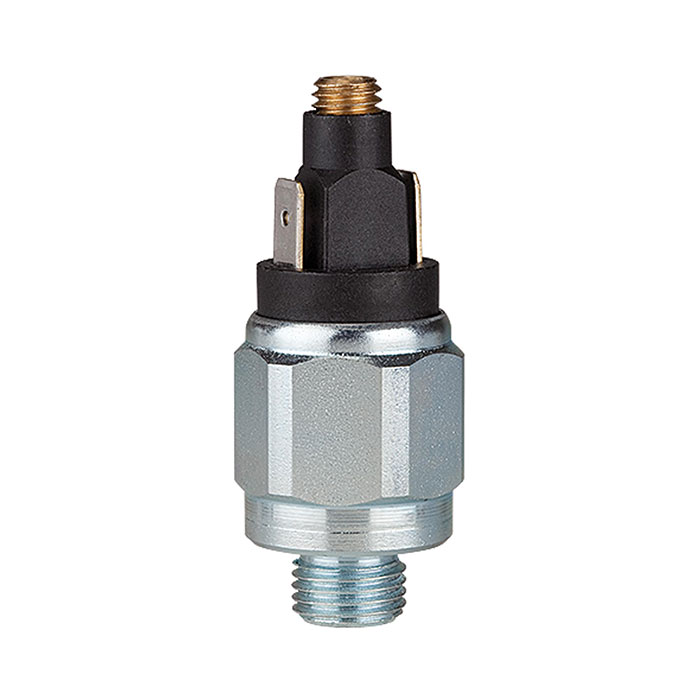

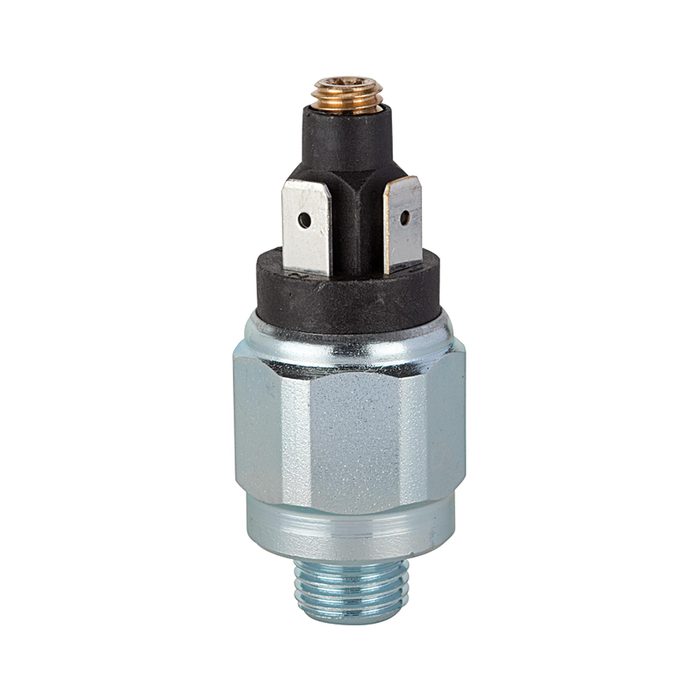

RIEGLER Pressure switch standard design, galvanised steel, 10 - 70 bar
Type number: DS 4023
EAN: 4047322126243
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Druckschalter Standardausführung, Stahl verzinkt, Umgebungstemp. -25 °C bis 85 °C, G 1/8, Einstellbereich 10 - 70 bar, Öffner
| Electrical connection | Spade connector 2 x 6.3 x 0.8 |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 85 °C |
| Material | Galvanized steel |
| Area of application | Air, hydraulic oil, oil emulsions, water |
| Switching voltage | 42 V |
| Switching frequency | 200/min |
| Thread | G 1/8 |
| Function | Öffner |
| Setting range min. | 10 bar |
| Type of construction | Kolben federbelastet |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 70 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
