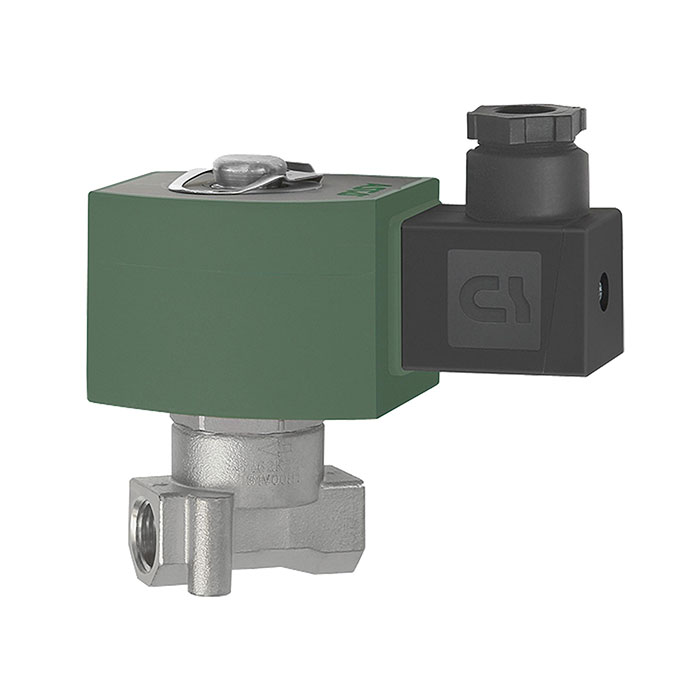

RIEGLER 2/2-way sol. valve,AISI 304,NBR,NC, dir. op., 230 V,NPT 1/8
Type number: MV 100 ES
EAN: 4047322156363
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, AISI304, NBR, NC, direct acting,230V,50-60Hz, Med-Temp -25 to 80°C, Ambient-Temp -25 to 55°C,NPT1/8,PN0-25bar
| Housing | Stainless steel 1.4301 |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 25 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Valve seat | Edelstahl 1.4301 |
| Thread | NPT 1/8 |
| DN | 45384 |
| Design | 1 |
| Function | stromlos geschlossen (NC) |
| A | 91 mm |
| B | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
