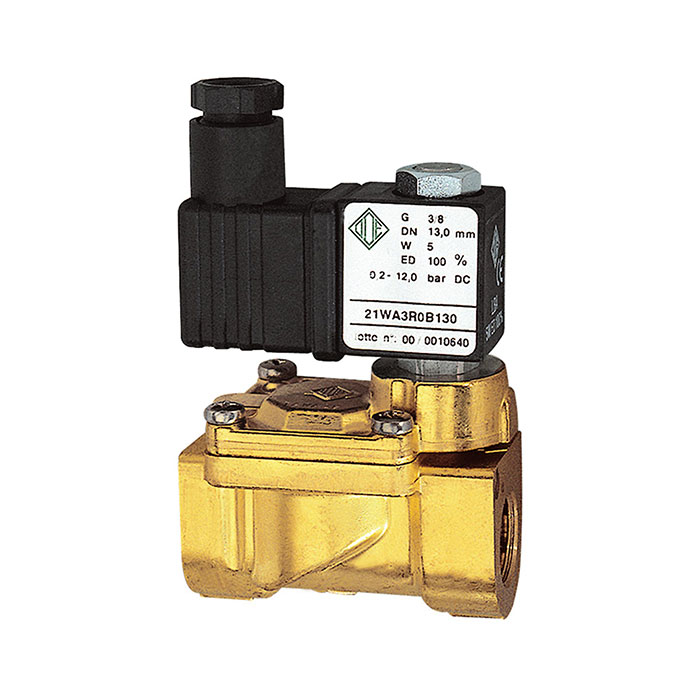

2/2-sol.valve,NC,pilot oper.,230V,50Hz,NBR,G3/8,PN0.2-16bar
Typennummer: MV 1355
EAN: 4047322159067
2/2-Wege-MV, MS, NC, vorgesteuert, 230V, 50Hz, 10VA, Mediumstemp. -10°C bis 90°C, NBR, G 3/8, PN 0,2 - 16bar
| Housing | Messing |
| Sealing material | NBR |
| Protection class | IP 65 (bei Verwendung der Gerätesteckdose) |
| Electrical connection | für Gerätesteckdose PG 9/PG 11, nach ISO 4400 |
| Operating pressure min. | 0.2 bar |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Edelstahl |
| Valve seat | Messing |
| Thread | G 3/8 |
| DN | 13 |
| Design | 5 |
| Function | stromlos geschlossen (NC) |
| A | 40 mm |
| B | 60 mm |
| REACH SVHC1 Substance Name | Blei |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS konform |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Artikel 4, Absatz 1, Anhang 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | enthält SVHC Stoff |
| Share of SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Proportion of SVHC substance in SCIP | >= 0,1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
