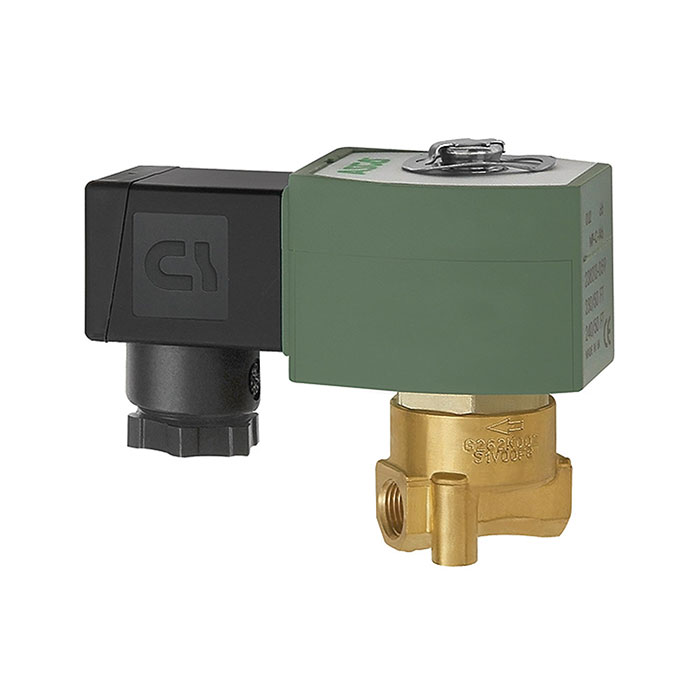

2/2-way solenoid valve, NO, directly operated, 230 V, 50 - 60 Hz
Typennummer: MV 2235
EAN: 4047322160421
2/2-Wege-Magnetventil, MS, NO, direktgest., 230V, 50-60Hz, Med-Temp -15 bis +100°C, Umgeb-Temp -15 bis +55°C,FPM,G 1/4,PN 0-11bar
| Housing | Messing |
| Sealing material | FPM |
| Protection class | IP 65 (bei Verwendung der Gerätesteckdose) |
| Electrical connection | ISO 4400, Leitungsdose (Pg 11P) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 11 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Edelstahl |
| Valve seat | Messing |
| Thread | G 1/4 |
| DN | 45325 |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1 |
| Design | 2 |
| Function | stromlos offen (NO) |
| A | 80 mm |
| B | 40 mm |
| REACH SVHC1 Substance Name | Blei |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS konform |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Artikel 4, Absatz 1, Anhang 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | enthält SVHC Stoff |
| Share of SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Proportion of SVHC substance in SCIP | >= 0,1 % in w/w |
| Material identification | keine |
| Class name | MAX |
