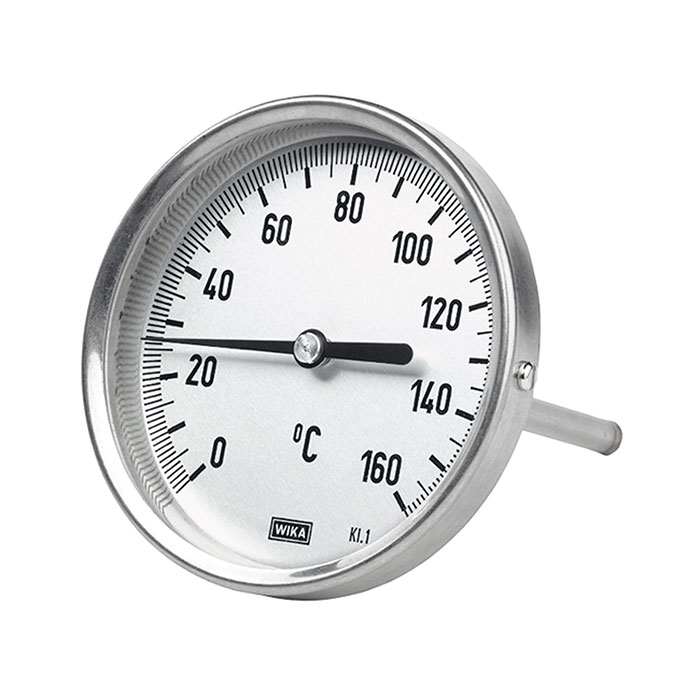

RIEGLER Bi-metallic thermometer rear G 1/2, Immersion shaft length 100 mm
Typennummer: 5208
EAN: 4047322098625
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Bimetallthermometer, Industrieausf., Anschluss hinten, G 1/2, Tauchschaftlänge 100 mm, Ø 100 mm, Anzeigebereich 0 °C bis 160 °C
| Housing | CrNi steel |
| Type | 52 |
| Viewing window | Instrumentenflachglas |
| Display correction | Adjustable pointer |
| Diving shaft | Ø 8 mm, CrNi-Stahl 1.4571 |
| Operating pressure | max. 25 bar (on the immersion shaft) |
| Thread | G 1/2 |
| Diameter | 100 mm |
| Graduation value in the bar range | 1 bar |
| Dip shaft length | 100 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Ring | CrNi steel |
| Display range min. | 0 °C |
| Display range max. | 160 °C |
| Connection position | at the back |
| Class name | FLEX |
