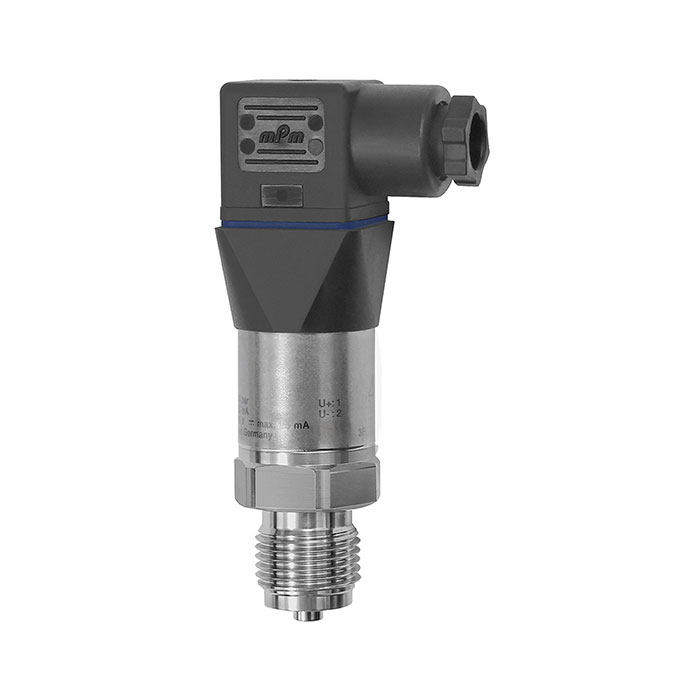

RIEGLER Electr. pressure transducer, 0 - 1 bar, G 1/2, CrNi steel 1.4571
Typennummer: 897.1
EAN: 4047322380676
Elektr. Druckmessumformer, allg. industrielle Anwendungen, Nichtlinearität 0,25%, Messber. 0 - 1,0 bar, G 1/2, CrNi-Stahl 1.4571
| Housing | Stainless steel 1.4571 |
| Protection class | IP 65 according to EN 60529 |
| Electrical connection | with angled plug to DIN EN 175301-803 A |
| Operating voltage | DC 8 ... 36 V |
| Medium temperature min. | -30 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -30 °C |
| Ambient temperature max. | 100 °C |
| Type | S-20 |
| Wetted parts | Stainless steel 1.4571 |
| Non-linearity | up to 0.25% of the margin |
| Output signal | 4 - 20 mA, 2-wire |
| Thread | G 1/2 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Lower / Upper measuring range limit | Überdruck |
| Class name | MAX |
