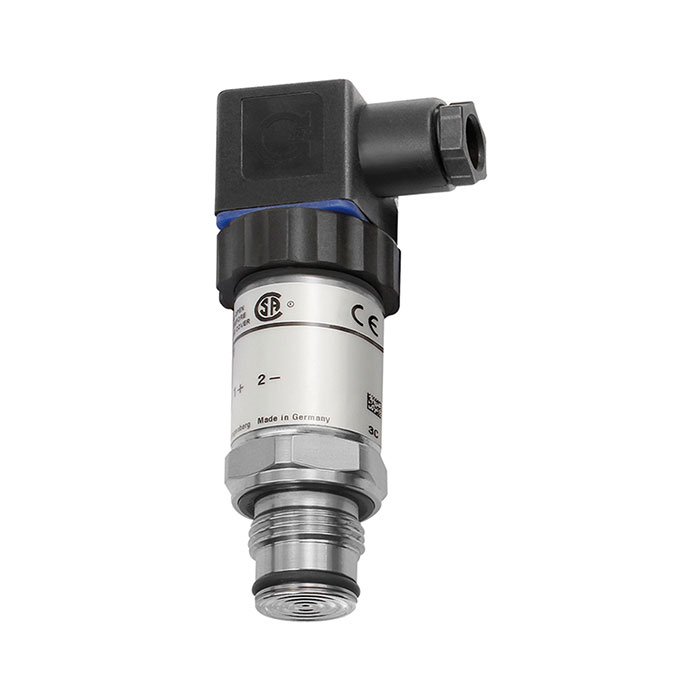

RIEGLER Electr. pressure transducer, 0 - 10 bar, G 1/2, CrNi steel 1.4571
Typennummer: 896.10
EAN: 4047322379335
Elektr. Druckmessumformer, viskose-, feststoffhaltige Medien, Nichtlinearität 0,2%, Messber. 0-10,0 bar, G 1/2, CrNi-Stahl 1.4571
| Housing | Stainless steel 1.4571 |
| Protection class | IP 65 according to EN 60529 |
| Electrical connection | with angled plug to DIN EN 175301-803 A |
| Operating voltage | DC 10 €¦ 30 V |
| Medium temperature min. | -30 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Type | S-11 |
| Wetted parts | Stainless steel 1.4571 |
| Non-linearity | 0.2% of the margin |
| Output signal | 4 - 20 mA, 2-wire |
| Thread | G 1/2 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
