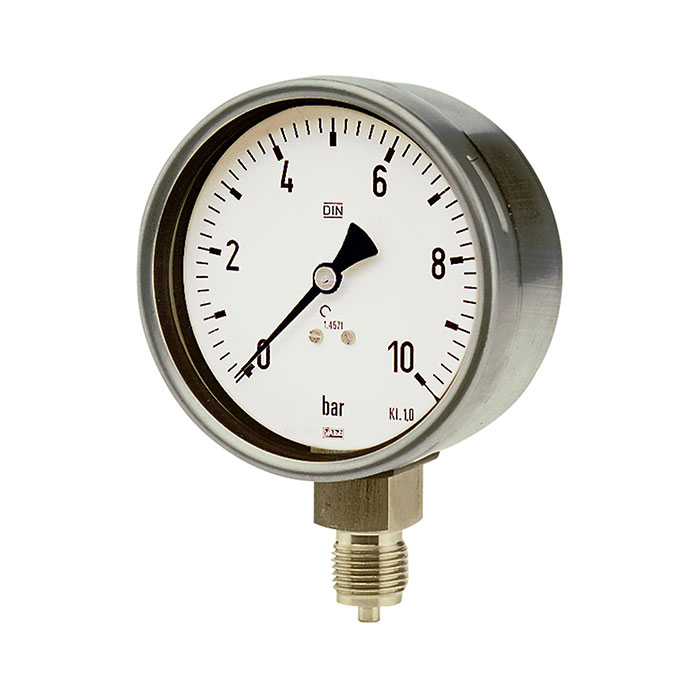

RIEGLER Pressure gauge, CrNi steel, radial bottom, G 1/4, 0-10 bar, Ø 63
Typennummer: 4005
EAN: 4047322084437
Manometer in CrNi-Stahl-Ausführung, Anschluss radial unten, G 1/4, Typ 232.50, Güteklasse 1,6, Messber. 0 - 10,0 bar, Ø 63
| Medium temperature min. | -40 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 60 °C |
| Material | CrNi steel |
| Type | 232.50 |
| Viewing window | Polycarbonat |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Diameter | 63 mm |
| Graduation value in the bar range | 0.5 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Überdruck |
| Connection position | radial bottom |
| Class name | STAINLESS STEEL |
| Process connection material | CrNi steel |
