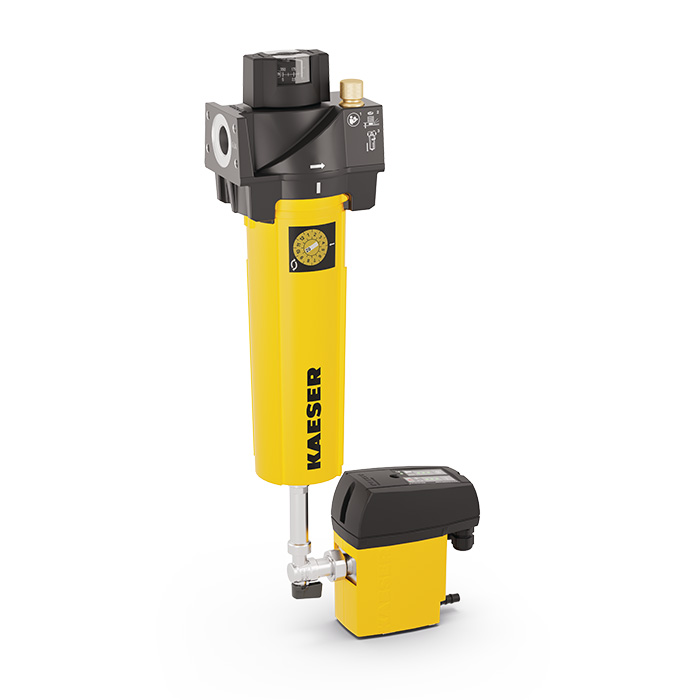

KAESER Filter Extra model F46KE G 1 1/4", ECO-DRAIN 31F
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
102123.10541Category :
Compressed air filtersWeight :
8.20 kgDelivery area :
Deutschland| Volume flow (m³/min) | 4,6 |
| Compressed air inlet connection | G 1 1/4" |
| Differential pressure in new condition | <0,05 |
| Differential pressure at saturation | <0,2 |
| Residual aerosol content | <0,01 |
| Min. overpressure (bar) | 2 |
| Max. Overpressure (bar) | 16 |
| Weight (kg) | 8,4 |
| Width (mm) | 273 |
| Height (mm) | 557 |
| Depth (mm) | 250 |
| Condensate drain | ECO-DRAIN 31F |
Product variants
![[MDM500199932] KAESER Filter Extra model F46KE G 1 1/4", Ball valve](/web/image/product.template/262485/image_128/%5BMDM500199932%5D%20KAESER%20Filter%20Extra%20model%20F46KE%20G%201%201-4%22%2C%20Ball%20valve?unique=bd21dbb)
![[MDM500012069] KAESER Filter Extra model F46KE G 1 1/4", ECO-DRAIN 30](/web/image/product.template/262416/image_128/%5BMDM500012069%5D%20KAESER%20Filter%20Extra%20model%20F46KE%20G%201%201-4%22%2C%20ECO-DRAIN%2030?unique=bd21dbb)
![[102123.10511] KAESER Filter Extra model F46KE G 1 1/4", Float drain](/web/image/product.template/262312/image_128/%5B102123.10511%5D%20KAESER%20Filter%20Extra%20model%20F46KE%20G%201%201-4%22%2C%20Float%20drain?unique=bd21dbb)
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405343.0] KAESER Mounting KIT connecting flange KF3.2](/web/image/product.template/226216/image_128/%5B405343.0%5D%20KAESER%20Mounting%20KIT%20connecting%20flange%20KF3.2?unique=bd21dbb)
|
Montage-KIT / Verbindungskit für 2 KAESER-Druckluftfilter |
43.91 € | |
![[4E0521.0] KAESER Wall holder filter kit KF3.2](/web/image/product.template/234633/image_128/%5B4E0521.0%5D%20KAESER%20Wall%20holder%20filter%20kit%20KF3.2?unique=bd21dbb)
|
KIT Wandhalter für KAESER-Druckluftfilter |
80.44 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=bd21dbb)
|
568.82 € | ||
![[8.2474.01540] KAESER Service-Unit ECO-DRAIN 31/31F](/web/image/product.template/16858/image_128/%5B8.2474.01540%5D%20KAESER%20Service-Unit%20ECO-DRAIN%2031-31F?unique=bd21dbb)
|
Für Kondensatableiter KAESER ECO-DRAIN 31/31F |
180.88 € | |
