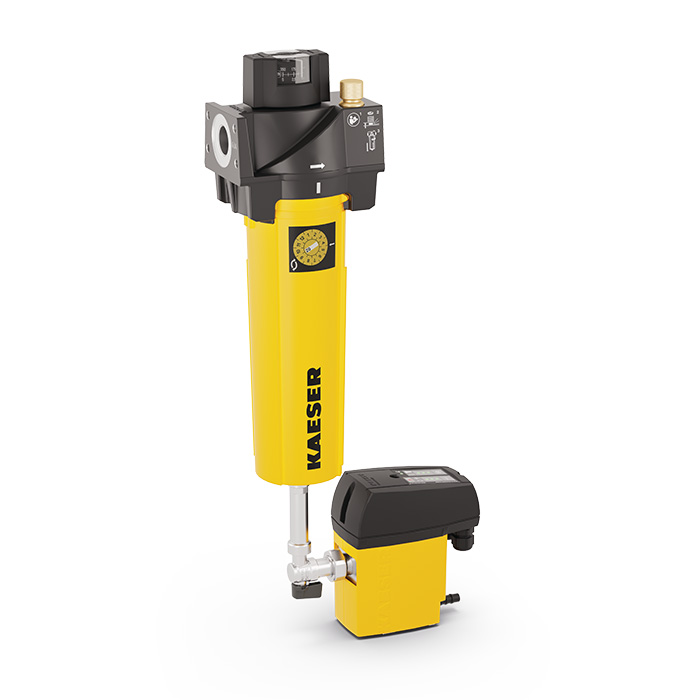

KAESER Filter Basic model F16KB G 3/4", ECO-DRAIN 31F
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
102109.10341Category :
Compressed air filtersWeight :
4.20 kgDelivery area :
Deutschland| Volume flow (m³/min) | 1,60 |
| Compressed air inlet connection | G 3/4" |
| Differential pressure in new condition | < 0,03 |
| Differential pressure at saturation | < 0,14 |
| Residual aerosol content | < 0,1 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Width (mm) | 241 |
| Height (mm) | 488 |
| Depth (mm) | 225 |
| Condensate drain | ECO-DRAIN 31F |
| Min. ambient temperature (°C) | +3 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +3 |
| Max. Compressed air inlet temperature (°C) | +66 |
Product variants
![[MDM500011115] KAESER Filter Basic model F16KB G 3/4", ECO-DRAIN 30](/web/image/product.template/262371/image_128/%5BMDM500011115%5D%20KAESER%20Filter%20Basic%20model%20F16KB%20G%203-4%22%2C%20ECO-DRAIN%2030?unique=67949e4)
![[102109.10311] KAESER Filter Basic model F16KB G 3/4", Float drain](/web/image/product.template/262271/image_128/%5B102109.10311%5D%20KAESER%20Filter%20Basic%20model%20F16KB%20G%203-4%22%2C%20Float%20drain?unique=67949e4)
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

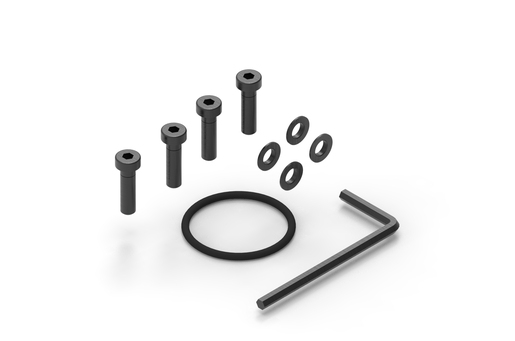

![[405342.0] KAESER mounting KIT connecting flange KF2.2](/web/image/product.template/226606/image_128/%5B405342.0%5D%20KAESER%20mounting%20KIT%20connecting%20flange%20KF2.2?unique=67949e4)
|
Montage-KIT / Verbindungskit für 2 KAESER-Druckluftfilter |
33.80 € | |

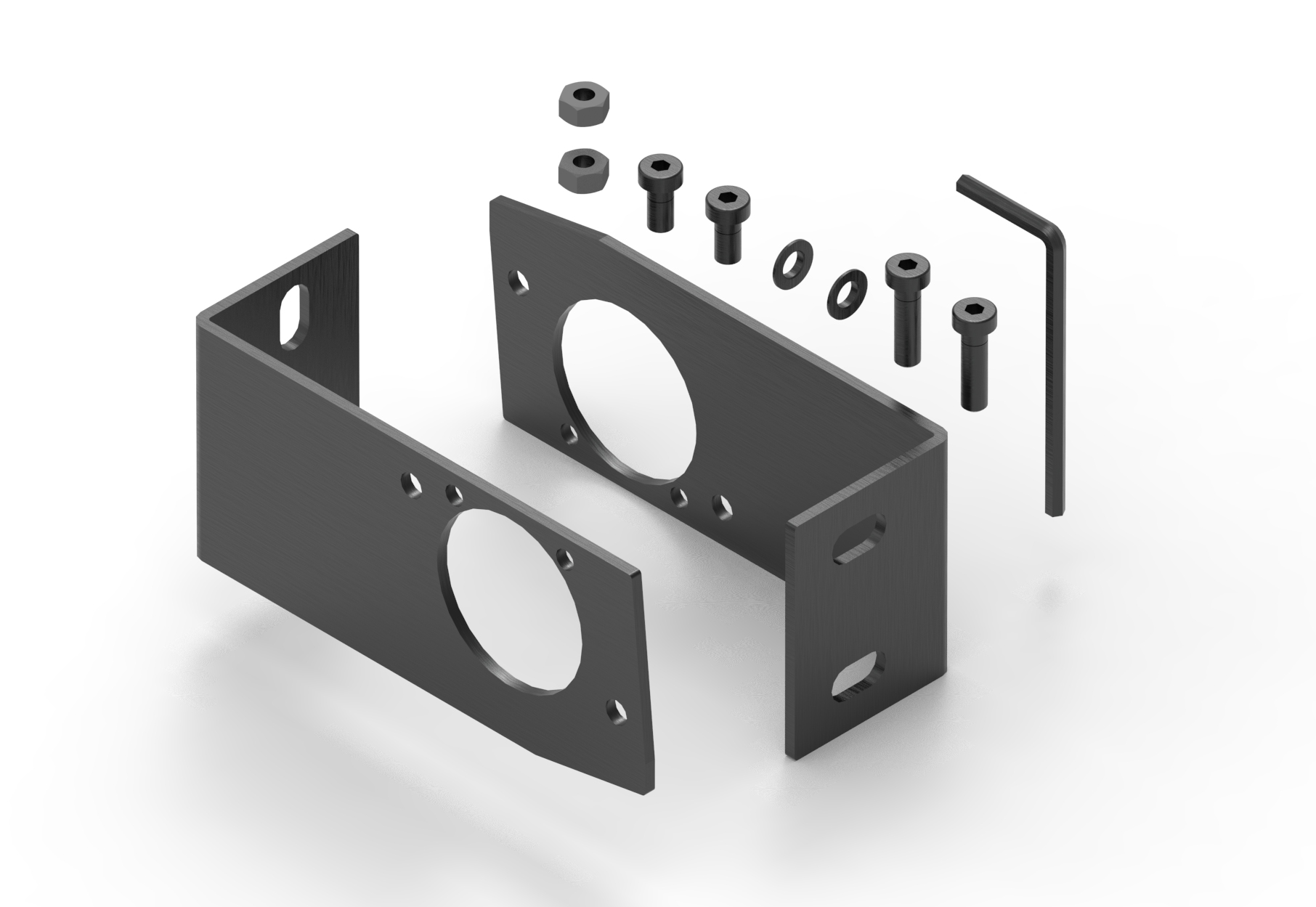

![[4E0520.0] KAESER KIT wall mount filter KF2.2](/web/image/product.template/234770/image_128/%5B4E0520.0%5D%20KAESER%20KIT%20wall%20mount%20filter%20KF2.2?unique=67949e4)
|
KIT Wandhalter für KAESER-Druckluftfilter |
60.50 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=67949e4)
|
478.00 € | ||
![[8.2474.01540] KAESER Service-Unit ECO-DRAIN 31/31F](/web/image/product.template/16858/image_128/%5B8.2474.01540%5D%20KAESER%20Service-Unit%20ECO-DRAIN%2031-31F?unique=67949e4)
|
Für Kondensatableiter KAESER ECO-DRAIN 31/31F |
152.00 € | |
