KAESER Screw compressor model SK 25-8 T SC2 OAL

Price:

16,220.30 €

KAESER Screw compressor model SK 25-11 T SC2 OAL
KAESER Screw compressor model SK 25-11 T SC2 OAL
16,220.30 €
16,220.30 €
KAESER Screw compressor model SM 10-8 T SC2 OAL
KAESER Screw compressor model SM 10-8 T SC2 OAL
10,925.69 €
10,925.69 €
10% follow-up discount + 5-year warranty

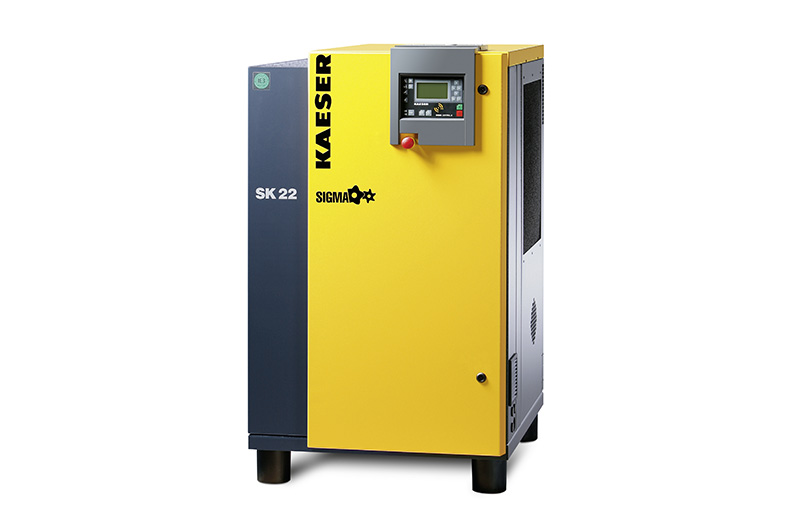

KAESER Screw compressor model SK 25-8 T SC2 OAL

https://www.filcom-technik.de/web/image/product.template/95801/image_1920?unique=cc9e3c5

16,220.30 € 16220.300000000001 EUR 16,220.30 € VAT Included

20,970.00 € VAT Included

Not Available For Sale


  • Brand

This combination does not exist.


KAESER Kompressoren SE
KAESER Kompressoren SE

KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.


Free shipping
Free delivery within Germany Details

Product no. :
101963.01
Weight :
395.00 kg
Delivery area :
Germany

Max. Overpressure (bar) 8
Volume flow at overpressure (m³/min) 2,52
Rated power drive motor (KW) 15
Drive motor efficiency class IE3
Permissible pressure loss cooling channel (Pa) 30
Max. usable warm air volume (m³/h) 3000
Max. usable heat output 16,5
Max. usable heat output 12
Required supply air opening (m2) 0,5
Drive motor protection class IP 55
Electrical supply 400 V / 3 Ph / 50 Hz
Full load current 32 A
Fuse: Max current 40 A
Cooling fluid filling quantity (litres) 7,2
Width (mm) 750
Depth (mm) 1240
Height (mm) 1260
Compressed air connection G 1
Sound pressure level (dbA) 67
Refrigeration dryer power consumption (kW) 0,49
Refrigeration dryer pressure dew point (°C) 3
Refrigeration dryer pressure loss (bar) 0,18
Refrigerant R-513A
Refrigerant charge (kg) 0,52
CO2 equivalent (tonnes) 0,33
Global warming potential GWP 631
KAESER Betriebsanleitung SK-T
Download
KAESER Prospekt SK
Download
Accessoires and suitable extensions
Product Price
[102116.10400] KAESER Filter adsorption model F26KA G 1" 597.00 €
[102119.10441] KAESER Filter Extra model F26KE G 1", ECO-DRAIN 31F 950.00 €
[3.5316.50380] KAESER Compressed air tank 500/11 st. CE/SPV

Ausführung stehend, zulässiger Höchstüberdruck 11 bar

Hinweis (Abbildung):
Der Behälter wird ohne Armaturensatz / Manometersatz geliefert.
Wir empfehlen diesen mitzubestellen!

2,190.00 €
[5.3495.0] KAESER Oil-water separator model Aquamat CF 6

Hochwertiger Öl Wasser Trenner / Öl Wasser Separator zum Abscheiden von Öl aus dem Kondensat

680.00 €
[920023.2] KAESER Pressure maintenance system Model DHS4.0 25G G1" PS16 2,485.00 €
