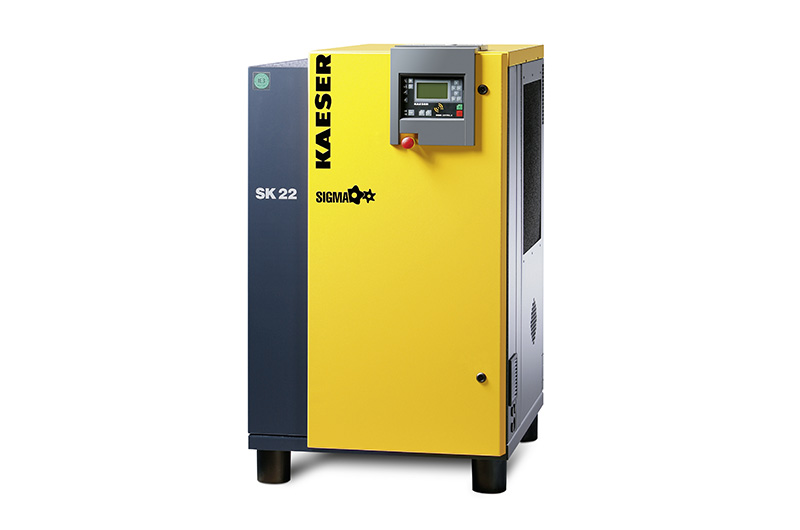

KAESER Screw compressor model SK 22-8 T SC2 OAL
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
101960.01Category :
With refrigeration dryerWeight :
387.00 kgDelivery area :
Germany| Volume flow at overpressure (m³/min) | 2,00 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (KW) | 11 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 2.500 |
| Max. usable heat output | 13,2 |
| Max. usable heat output | 9,4 |
| Required supply air opening (m2) | 0,45 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 26 A |
| Fuse: Max current | 32 A |
| Cooling fluid filling quantity (litres) | 7,2 |
| Width (mm) | 750 |
| Depth (mm) | 1.240 |
| Height (mm) | 1.260 |
| Weight (kg) | 387 |
| Compressed air connection | G 1 |
| Sound pressure level (dbA) | 66 |
| Refrigeration dryer power consumption (kW) | 0,49 |
| Pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,12 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,52 |
| CO2 equivalent (tonnes) | 0,33 |
| Global warming potential GWP | 631 |
