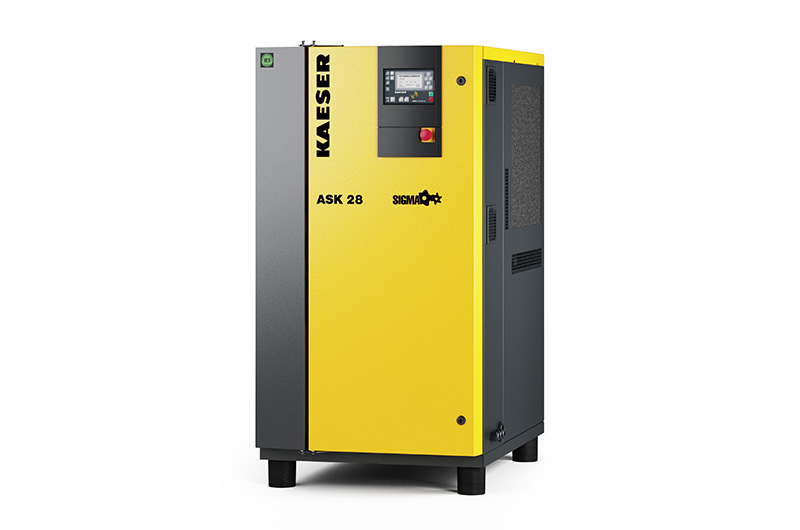

KAESER Screw compressor model ASK 28-8 T SC2
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
101911.01Category :
With refrigeration dryerWeight :
580.00 kgDelivery area :
Germany| Volume flow at overpressure (m³/min) | 2,85 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (KW) | 15 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 60 |
| Max. usable warm air volume (m³/h) | 4.000 |
| Max. usable heat output | 18,4 |
| Max. usable heat output | 13,6 |
| Required supply air opening (m2) | 0,6 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 35 A |
| Fuse: Max current | 40 A |
| Cooling fluid filling quantity (litres) | 10,2 |
| Width (mm) | 800 |
| Depth (mm) | 1.460 |
| Height (mm) | 1.530 |
| Weight (kg) | 580 |
| Compressed air connection | G 1 1/4 |
| Sound pressure level (dbA) | 65 |
| Refrigeration dryer power consumption (kW) | 0,60 |
| Pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,08 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,41 |
| CO2 equivalent (tonnes) | 0,26 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | ASK |
| Refrigeration dryer option | JA |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[102120.10500] KAESER Filter adsorption model F46KA G 1 1/4"](/web/image/product.template/262302/image_128/%5B102120.10500%5D%20KAESER%20Filter%20adsorption%20model%20F46KA%20G%201%201-4%22?unique=af03b25)
|
763.00 € | ||
![[102123.10541] KAESER Filter Extra model F46KE G 1 1/4", ECO-DRAIN 31F](/web/image/product.template/262313/image_128/%5B102123.10541%5D%20KAESER%20Filter%20Extra%20model%20F46KE%20G%201%201-4%22%2C%20ECO-DRAIN%2031F?unique=af03b25)
|
1,116.00 € | ||

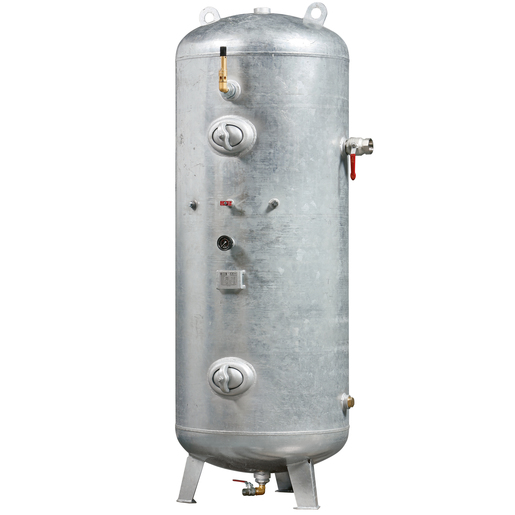

![[3.5535.1] KAESER Compressed air tank 1000/11 st. CE/PED](/web/image/product.template/102304/image_128/%5B3.5535.1%5D%20KAESER%20Compressed%20air%20tank%201000-11%20st.%20CE-PED?unique=af03b25)
|
Ausführung stehend, zulässiger Höchstüberdruck 11 bar Hinweis: |
3,715.00 € | |
![[5.3495.0] KAESER Oil-water separator model Aquamat CF 6](/web/image/product.template/3693/image_128/%5B5.3495.0%5D%20KAESER%20Oil-water%20separator%20model%20Aquamat%20CF%206%20?unique=af03b25)
|
Hochwertiger Öl Wasser Trenner / Öl Wasser Separator zum Abscheiden von Öl aus dem Kondensat |
680.00 € | |
![[920024.2] KAESER Pressure maintenance system Model DHS4.0 32G G1 1/4" PS16](/web/image/product.template/102677/image_128/%5B920024.2%5D%20KAESER%20Pressure%20maintenance%20system%20Model%20DHS4.0%2032G%20G1%201-4%22%20PS16?unique=af03b25)
|
2,520.00 € | ||
