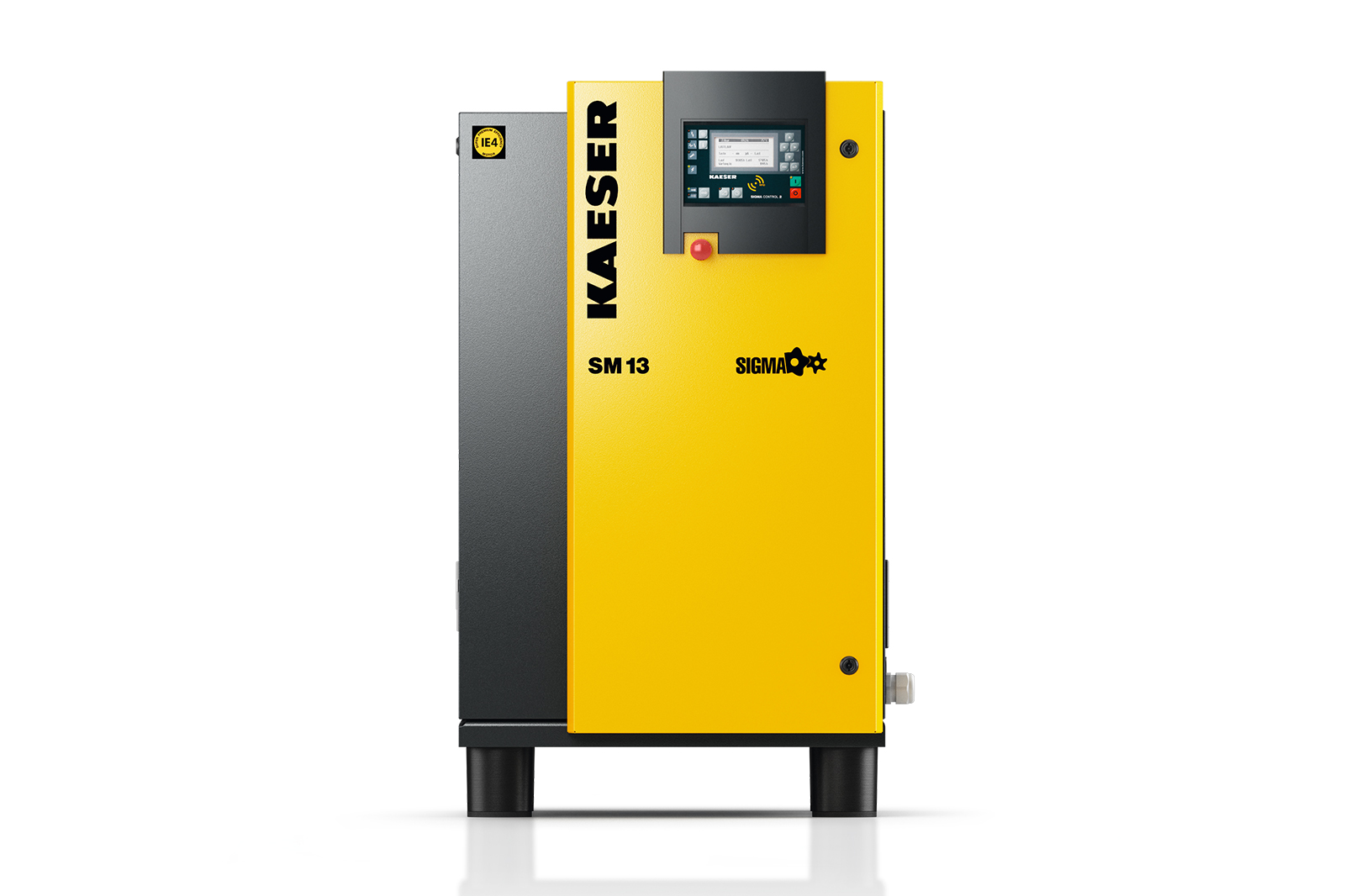

KAESER Screw compressor model SM 16-8 T SC2 OAL

https://www.filcom-technik.de/web/image/product.template/95857/image_1920?unique=cc9e3c5

13,656.14 € 13656.14 EUR 13,656.14 € VAT Included

17,655.00 € VAT Included

Not Available For Sale


  • Brand

This combination does not exist.


KAESER Kompressoren SE
KAESER Kompressoren SE

KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.


Free shipping
Free delivery within Germany Details

Product no. :
101745.0
Weight :
315.00 kg
Delivery area :
Germany

Volume flow at overpressure (m³/min) 1,61
Rated power drive motor (KW) 9
Max. Overpressure (bar) 8
Drive motor efficiency class IE3
Permissible pressure loss cooling channel (Pa) 20
Max. usable warm air volume (m³/h) 2.100
Max. usable heat output 11,1
Max. usable heat output 7,6
Required supply air opening (m2) 0,35
Drive motor protection class IP55
Electrical supply 400 V / 3 Ph / 50 Hz
Full load current 23 A
Fuse: Max current 32 A
Cooling fluid filling quantity (litres) 4
Width (mm) 630
Depth (mm) 1.090
Height (mm) 1.100
Weight (kg) 315
Compressed air connection G 3/4
Sound pressure level (dbA) 66
Refrigeration dryer power consumption (kW) 0,49
Refrigeration dryer pressure dew point (°C) 3
Refrigeration dryer pressure loss (bar) 0,20
Refrigerant R-513A
Refrigerant charge (kg) 0,39
CO2 equivalent (tonnes) 0,25
Global warming potential GWP 631
