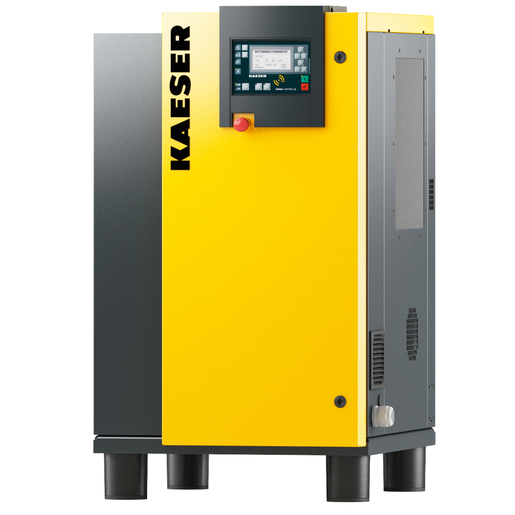

KAESER Screw compressor model SM 13-11 SC2 OAL
Der KAESER Schraubenkompressor SM mit SIGMA PROFIL und Kompressorsteuerung SIGMA CONTROL 2
Volumenstrom bei Überdruck: 1,09 l/min | Höchstüberdruck: 11 bar | Nennleistung Antriebsmotor: 7,5 KW | Elektrischer Anschluss: 400 V / 3 Ph / 50 Hz
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
| Volume flow at overpressure (m³/min) | 1,09 |
| Max. Overpressure (bar) | 11 |
| Rated power drive motor (kW) | 7,5 |
| Drive motor efficiency class | IE4 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 2.100 |
| Max. usable heat output "warm air" (kW) | 9,1 |
| Max. usable heat output "warm water" (kW) | 6,2 |
| Required supply air opening (m2) | 0,25 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 16 A |
| Fuse: Max current | 20 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 790 |
| Height (mm) | 1.100 |
| Weight (kg) | 240 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 65 |
