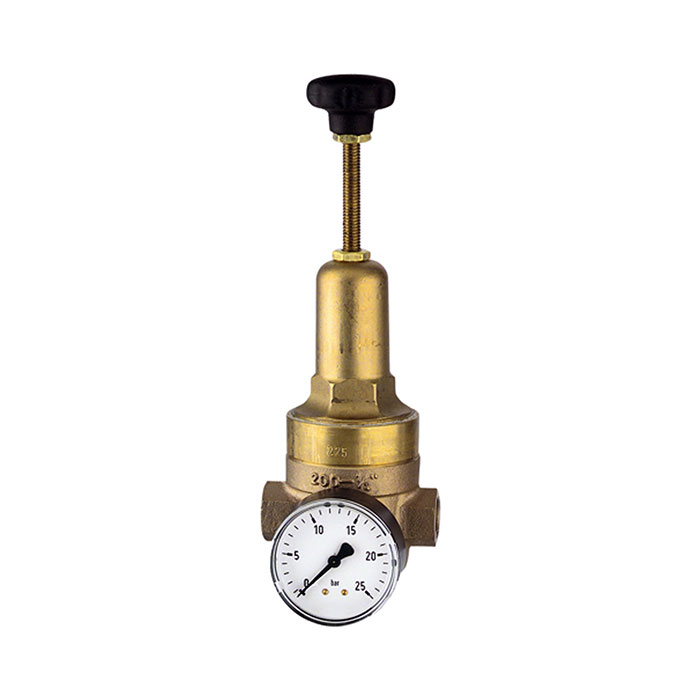

RIEGLER Pressure regulator DRV 225, High pressure design, G 1/4, 1.5 - 20
Typennummer: 400.01
EAN: 4047322084208
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Druckregler DRV 225, Hochdruckausführung, nicht rücksteuerbar, inkl. Manometer, G 1/4, Regelbereich 1,5 - 20 bar, PE max. 40 bar
| Inlet pressure max. | 40 bar |
| Temperature range min. | -15 °C |
| Temperature range max. | 100 °C |
| Housing | Gunmetal 2.1096.01 |
| Sealing material | NBR |
| Spring cover | Pressed brass |
| Thread | G 1/4 |
| Control range min. | 1.5 bar |
| Control range max. | 20 bar |
| Flow rate kvs-value | 0.5 m³/h |
| DN | 8 |
| A | 70 mm |
| B | 188 mm |
| C | 141 mm |
| D | 47 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Reduction ratio max. | 0 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
