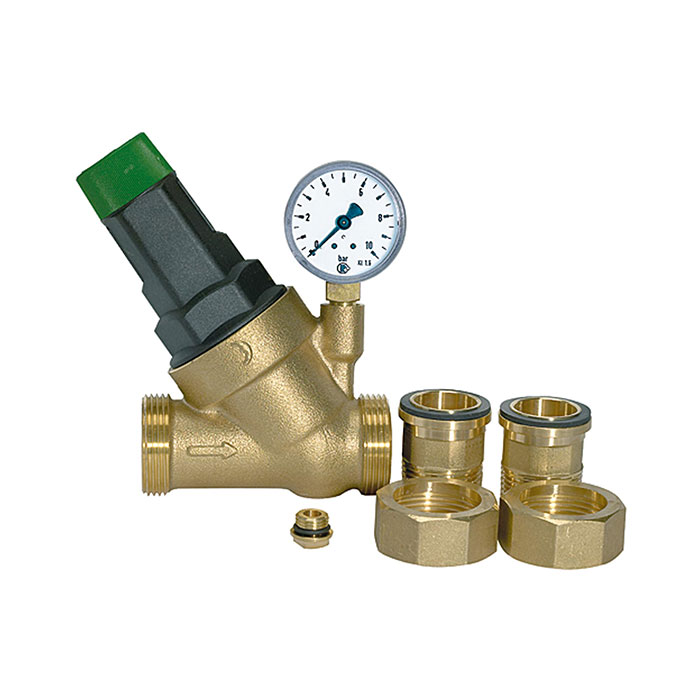

RIEGLER Pressure regulator »Saxonia«, potable water, DVGW tested, R 3/4
Typennummer: 100.32
EAN: 4047322011761
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Druckregler »Saxonia« für Trinkwasser, DVGW-geprüft, inkl. Manometer, R 3/4, Regelbereich 1,5 - 6 bar, Eingangsdruck max. 16 bar
| Inlet pressure max. | 16 bar |
| Medium | Drinking water |
| Housing | Brass |
| Sealing material | NBR |
| Series | Saxonia |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 40 °C |
| Spring cover | Plastic |
| Sieve cup | Kunststoff, mit Einstellskala für Hinterdruck |
| Water temperature min. | 5 °C |
| Water temperature max. | 30 °C |
| Thread | R 3/4 |
| Control range min. | 1.5 bar |
| Control range max. | 6 bar |
| Flow rate kvs-value | 3.4 m³/h |
| DN | 20 |
| A | 90 mm |
| B | 158 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
