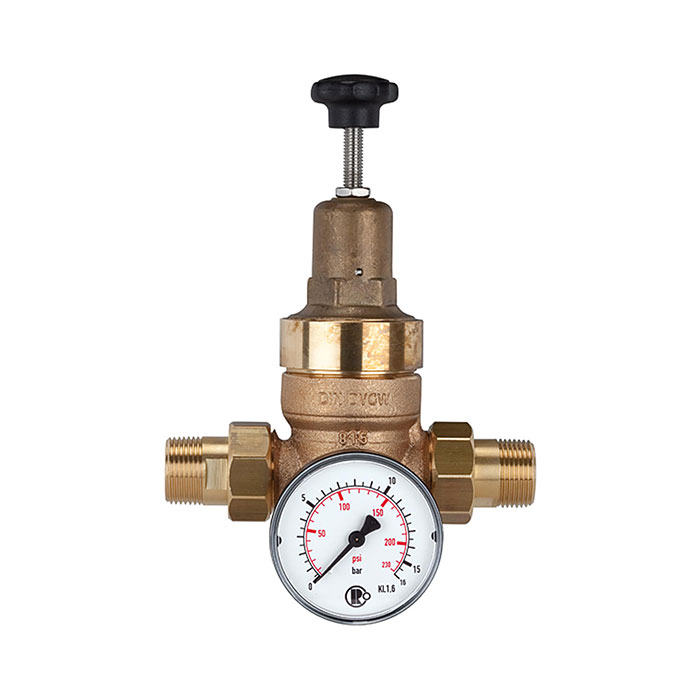

RIEGLER Pressure regulator for potable water, without DVGW, R 1 1/4
Type number: 100.114
EAN: 4047322274579
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Druckregler für Trinkwasser, ohne DVGW, inkl. Manometer, R 1 1/4, Regelbereich 1,5 - 12 bar, PE max. 25 bar, Vordruck min. 2,5 bar
| Inlet pressure max. | 25 bar |
| Housing | Gunmetal (Rg5) |
| Sealing material | NBR-SBR |
| Spring cover | Pressed brass |
| Interior parts | Plastic, brass, stainless steel |
| Minimum pressure drop | 1 bar |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 100 °C |
| Thread | R 1 1/4 |
| Control range min. | 1.5 bar |
| Control range max. | 12 bar |
| Flow rate kvs-value | 6.1 m³/h |
| DN | 32 |
| A | 177.2 mm |
| B | 234 mm |
| C | 187 mm |
| D | 47 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Form min. | 2.5 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
