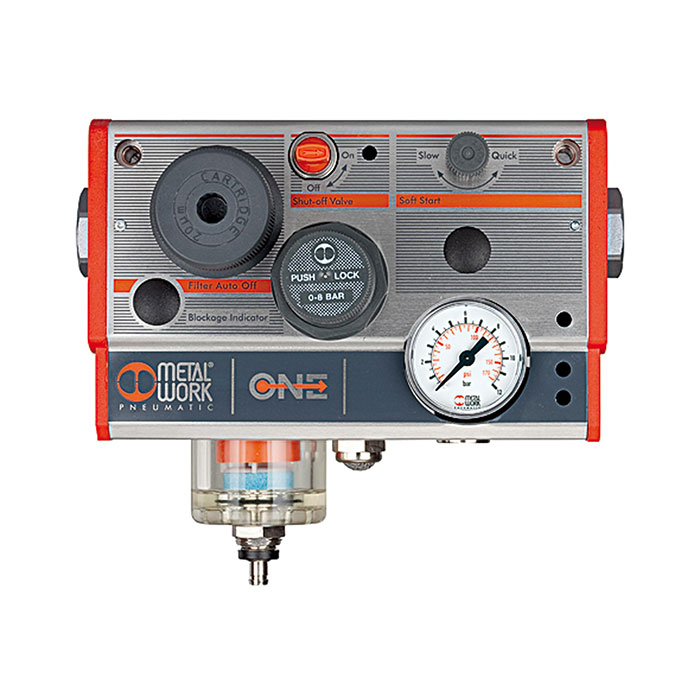

RIEGLER Service unit »ONE« without pressure switch, G 1/4
Type number: 533.301
EAN: 4047322284769
Wartungseinheit »ONE« ohne Druckschalter, G 1/4, Eingangsdruck max. 10 bar, Regelbereich 0,5 - 8 bar, Temp. -10 °C bis 50 °C
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air |
| Flow rate measurement | at P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | ONE |
| Filter fineness | 20 µm |
| Protection class | IP 65 |
| Operating voltage | 24 V DC (for valves and pressure switches) |
| Thread | G 1/4 |
| Flow rate | 2400 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| A | 165.5 mm |
| B | 144 mm |
| C | 35 mm |
| Class name | PLUS |
