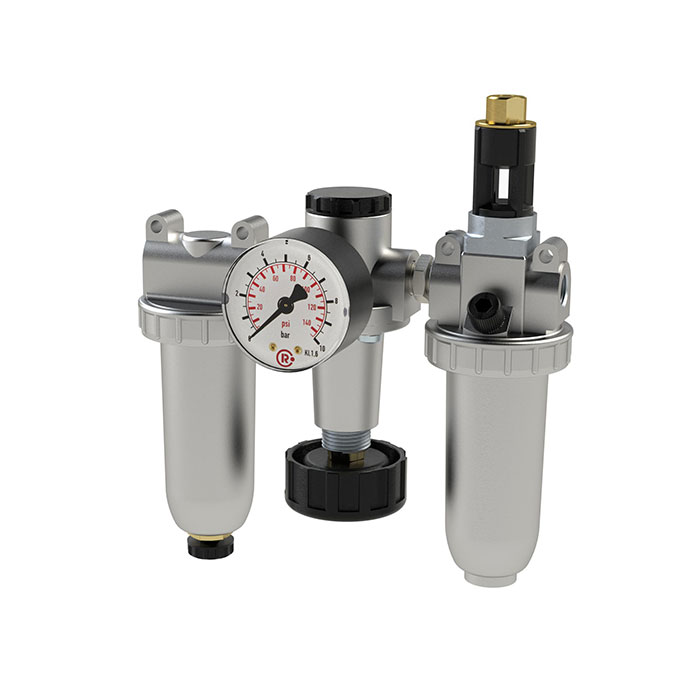

RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 3/4
Type number: 850 D/M
EAN: 4047322121491
Wartungseinheit 3-tlg. »Standard«, Metallbehälter und Tropfaufsatz Metall, BG 3, G 3/4, PE max. 25 bar, Regelbereich 0,5 - 16 bar
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 5 µm |
| Dropper attachment | Zink-Glas-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 3200 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | manually |
| DN | 20 |
| Pressure gauge Ø | 63 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 3 |
| A | 302 mm |
| B | 230.5 mm |
| C | 58 mm |
| Class name | EASY |
