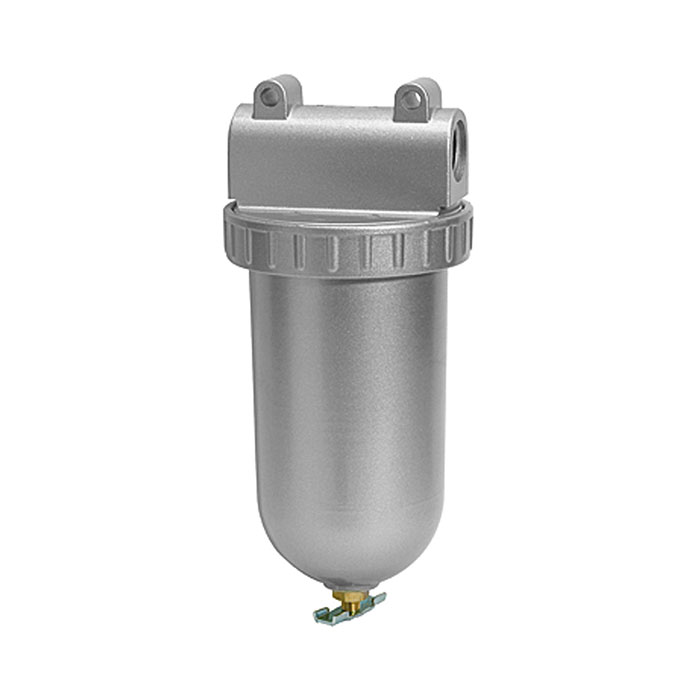

RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 1, G 1/4
Typennummer: 673 M
EAN: 4047322111614
Spezialfilter »Standard« mit Metallbehälter, 0,01 µm, BG 1, G 1/4, PE max. 25 bar, Med.-Umgebungstemp. max. 60 °C, Ablass: manuell
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 0.01 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/4 |
| Flow rate | 380 l/min |
| Condensate drain | manually |
| DN | 6 |
| BG | 1 |
| A | 48 mm |
| C | 14 mm |
| D | 133.5 mm |
| H | 38 mm |
| Class name | EASY |
