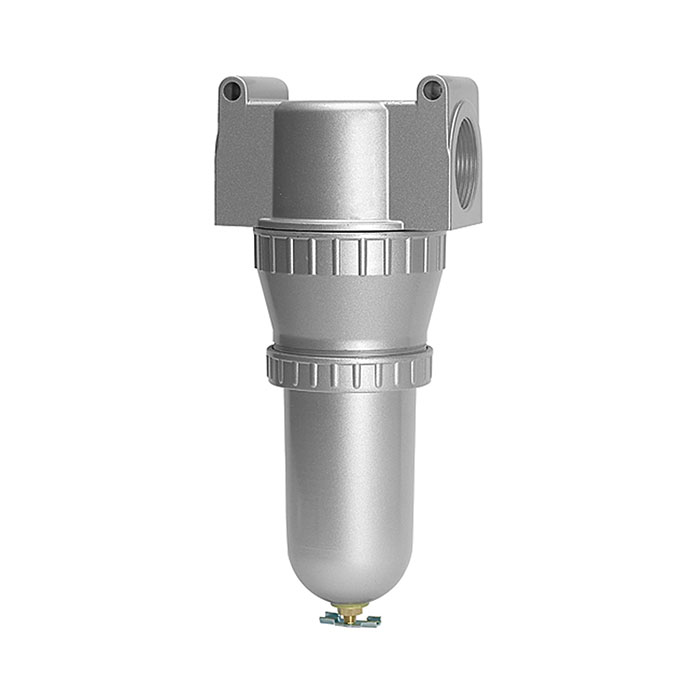

RIEGLER Filter »Standard« with metal container, 5 µm, Size 1, G 3/8
Type number: 640.126 M
EAN: 4047322109277
Filter »Standard« mit Metallbehälter, 5 µm, BG 1, G 3/8, PE max. 25 bar, Med.-Umgebungstemp. max. 60 °C, Ablassventil: manuell
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 800 l/min |
| Condensate drain | manually |
| DN | 6 |
| BG | 1 |
| A | 48 mm |
| C | 14 mm |
| D | 133.5 mm |
| H | 38 mm |
| Class name | EASY |
