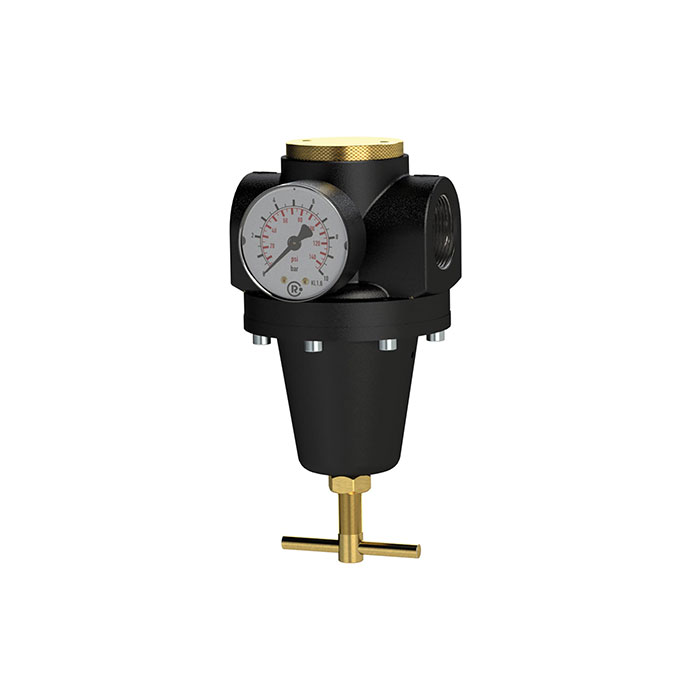

RIEGLER Constant pressure regulator, Size 4, G 1 1/4, 0.5 - 10 bar
Type number: 737.803
EAN: 4047322116060
Konstant-Druckregler inkl. Manometer, BG 4, G 1 1/4, PE max. 40 bar, Mediumstemperatur max. 90 °C, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 40 bar |
| Housing | Brass |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | andere |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Thread | G 1 1/4 |
| Flow rate | 12160 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| DN | 25 |
| BG | 4 |
| A | 114 mm |
| B | 126 mm |
| C | 48 mm |
| D | 189 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
