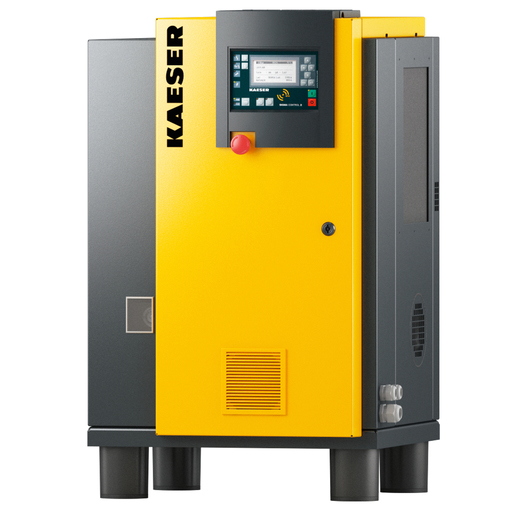

KAESER Screw compressor model SX 4-11 SC2 OAL
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
| Volume flow at overpressure (m³/min) | 0,37 |
| Max. Overpressure (bar) | 11 |
| Rated power drive motor (KW) | 3 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 1.000 |
| Max. usable heat output | 3,5 |
| Required supply air opening (m2) | 0,2 |
| Drive motor protection class | IP54 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 6 A |
| Fuse: Max current | 10 A |
| Cooling fluid filling quantity (litres) | 2,8 |
| Width (mm) | 590 |
| Depth (mm) | 632 |
| Height (mm) | 970 |
| Weight (kg) | 140 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 60 |
| Model range - Screw compressors | SX |
| Refrigeration dryer option | NEIN |
