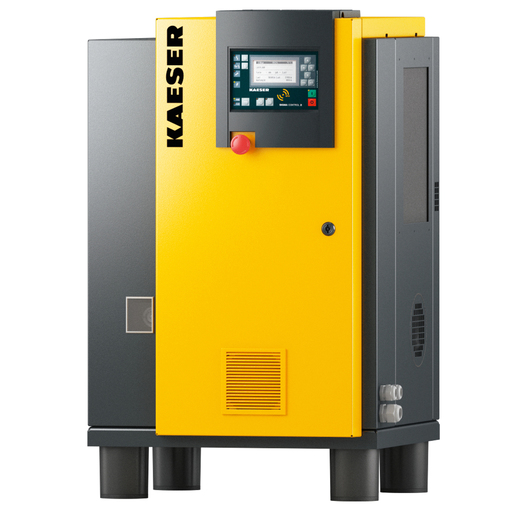

KAESER Screw compressor model SX 3-8 SC2 OAL
Der KAESER Schraubenkompressor SX mit Riemenantrieb und Steuerung SIGMA CONTROL 2
Volumenstrom bei Überdruck: 0,34 l/min | Höchstüberdruck: 8 bar | Nennleistung Antriebsmotor: 2,2 KW | Elektrischer Anschluss: 400 V / 3 Ph / 50 Hz
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
| Volume flow at overpressure (m³/min) | 0,34 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (kW) | 2,2 |
| Drive motor efficiency class | IE 3 |
| Permissible pressure loss cooling channel | 30 |
| Max. usable warm air volume (m³/h) | 1000 |
| Max. usable heat output "warm air" (kW) | 2,7 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 5 A |
| Fuse: Max current | 10 A |
| Width (mm) | 590 |
| Depth (mm) | 632 |
| Height (mm) | 970 |
| Weight (kg) | 140 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 59 |
| Model range - Screw compressors | SX |
| Refrigeration dryer option | NEIN |
