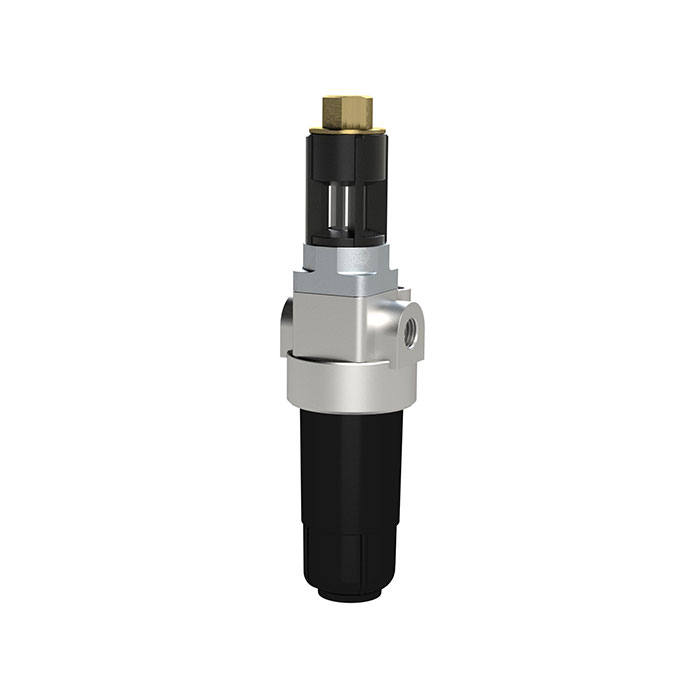

RIEGLER Mist oiler »Standard-mini« with metal container, Size 0, G 1/8
Typennummer: 743 M
EAN: 4047322116671
Nebelöler »Standard-mini« mit Metallbehälter und Tropfaufsatz Metall, BG 0, G 1/8, PE max. 25 bar, Med.-Umgebungstemp. max. 60 °C
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard-mini |
| Container | Metal container |

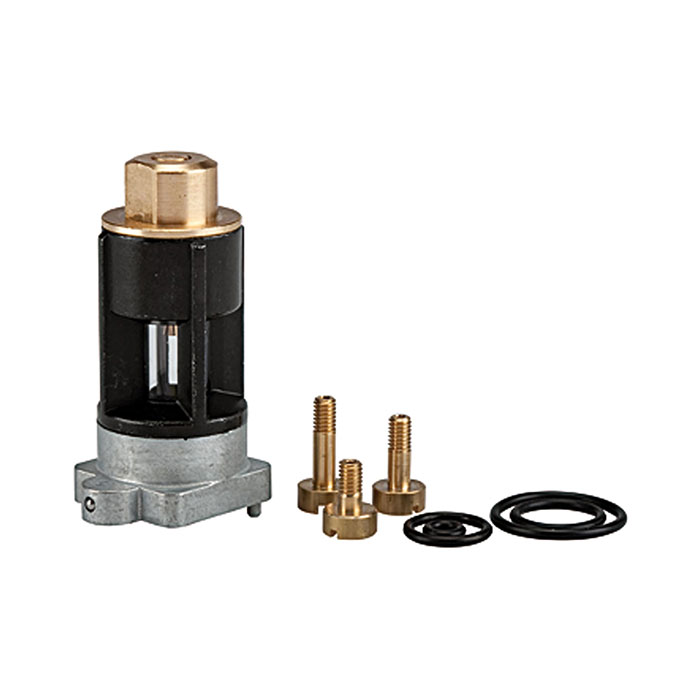

| Dropper attachment | Zink-Glas-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/8 |
| Flow rate | 650 l/min |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 154.7 mm |
| C | 70.2 mm |
| D | 84.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
