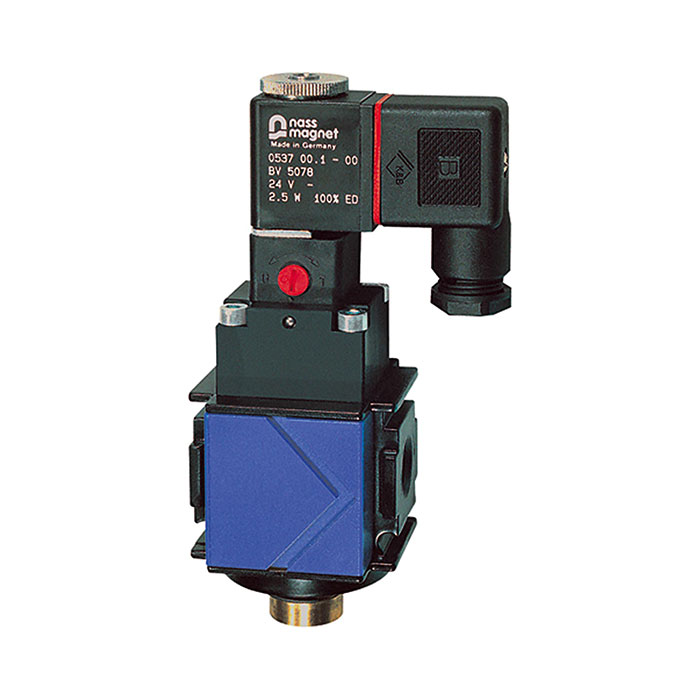

RIEGLER Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 2, G 1/2
Typennummer: VS 24
EAN: 4047322212649
Schaltventil (3/2-Wegeventil) »variobloc«, 24 V DC, BG 2, G 1/2, Arbeitsdruck 3 - 10 bar
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Protection class | IP 65 according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Operating voltage | 24 V DC |
| Working pressure min. | 3 bar |
| Working pressure max. | 10 bar |
| Thread | G 1/2 |
| Flow rate | 3300 l/min |
| BG | 2 |
| A | 70 mm |
| B | 157 mm |
| C | 113 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
