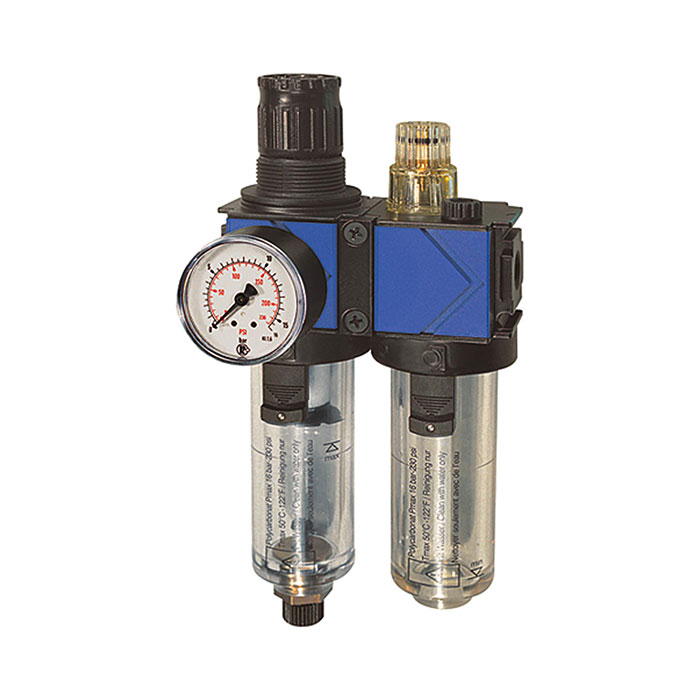

RIEGLER Service unit 2-part »variobloc« with PC container, Size 1, G 1/4
Typennummer: VW 22
EAN: 4047322170192
Wartungseinheit 2-tlg. »variobloc« mit Polycarbonatbehälter, BG 1, G 1/4, PE max. 16 bar, Mediums-Umgebungstemperatur max. 50 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | POM |
| Thread | G 1/4 |
| Flow rate | 1500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 96 mm |
| B | 203 mm |
| C | 68 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
