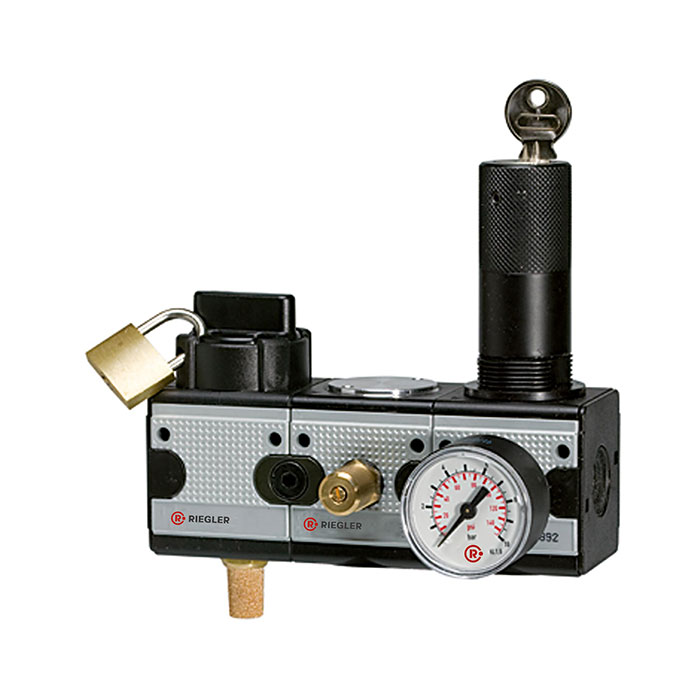

RIEGLER Service station SAFETY »multifix«, Size 3, G 1/2
Type number: WS 1002
EAN: 4047322245586
Wartungsstation SAFETY »multifix«, Kugelhahn-Anfahrventil-Druckregler, BG 3, G 1/2, PE 2 - 16 bar, Regelbereich 2 - 10 bar
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Spring cover | POM |
| Thread | G 1/2 |
| Flow rate | 4000 l/min |
| Control range min. | 2 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 189 mm |
| B | 200.8 mm |
| C | 122 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | PLUS |
