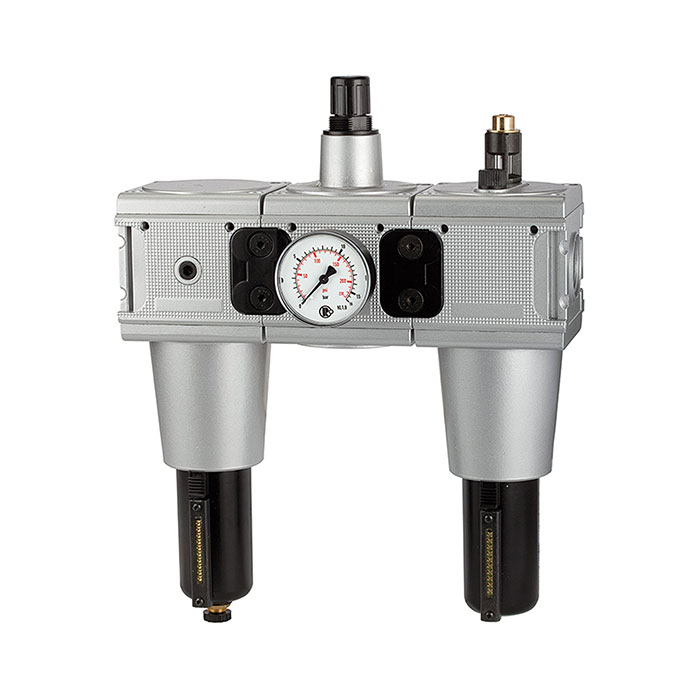

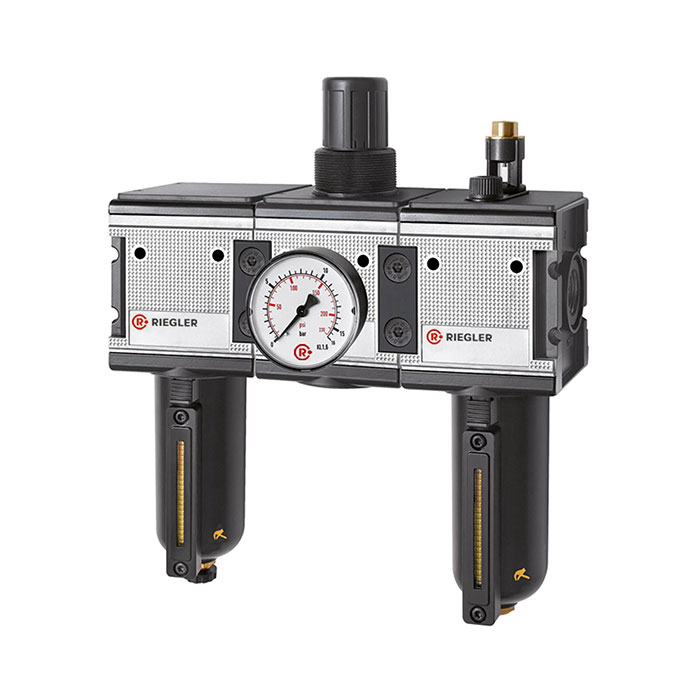

RIEGLER Service unit 3-part »multifix«, Metal container, Size 5, G 1
Type number: FRL 55 M-SR
EAN: 4047322132237
Wartungseinheit 3-tlg. »multifix«, Metallbehälter und Sichtrohr, BG 5, G 1, Eingangsdruck max. 20 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 20 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Dropper attachment | Zink-Glas-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 13500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 25 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 5 |
| A | 300 mm |
| B | 383.7 mm |
| C | 128 mm |
| D | 255.7 mm |
| Class name | PLUS |
