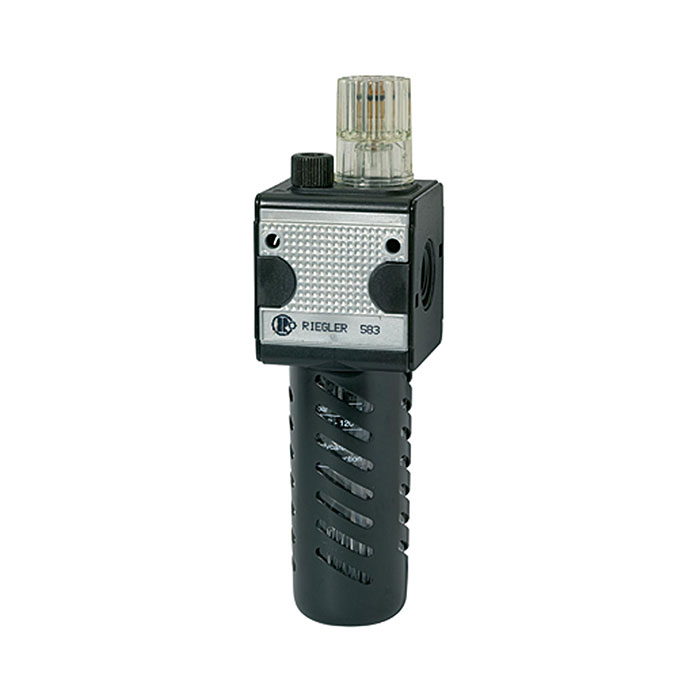

RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 3/8
Typennummer: L 12 S
EAN: 4047322155724
Nebelöler »multifix« mit Polycarbonatbehälter und Schutzkorb, BG 1, G 3/8, Eingangsdruck max. 16 bar, Med.-Umgeb.temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 1900 l/min |
| DN | 10 |
| BG | 1 |
| A | 47.8 mm |
| B | 167.8 mm |
| C | 58 mm |
| D | 109.8 mm |
| Class name | PLUS |
