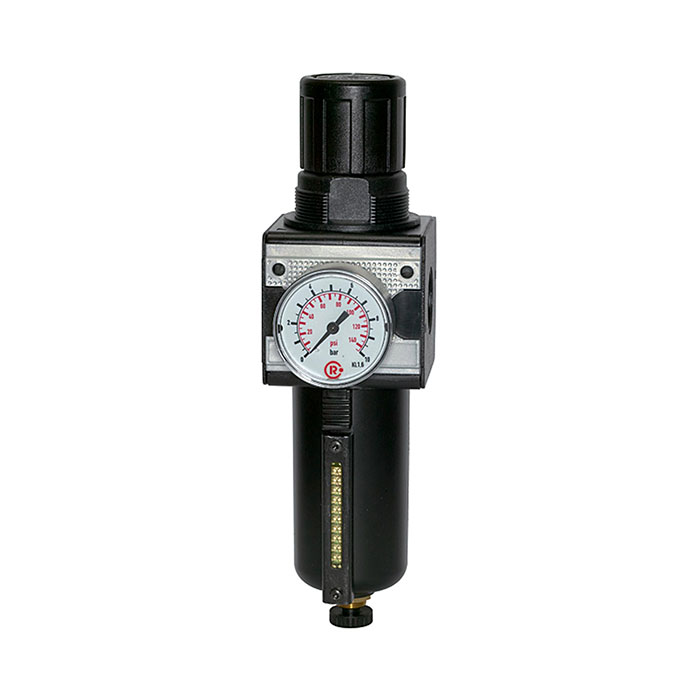

RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.5 - 10 bar
Type number: C 12 M-SR
EAN: 4047322124225
Filterregler »multifix« mit Metallbehälter, Sichtrohr u. Mano., 5 µm, BG 1, G 3/8, PE max. 20 bar, Regelber. 0,5-10 bar, Ablass HA
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 3/8 |
| Flow rate | 1600 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 10 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 47.8 mm |
| B | 192.5 mm |
| C | 67 mm |
| D | 125.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
