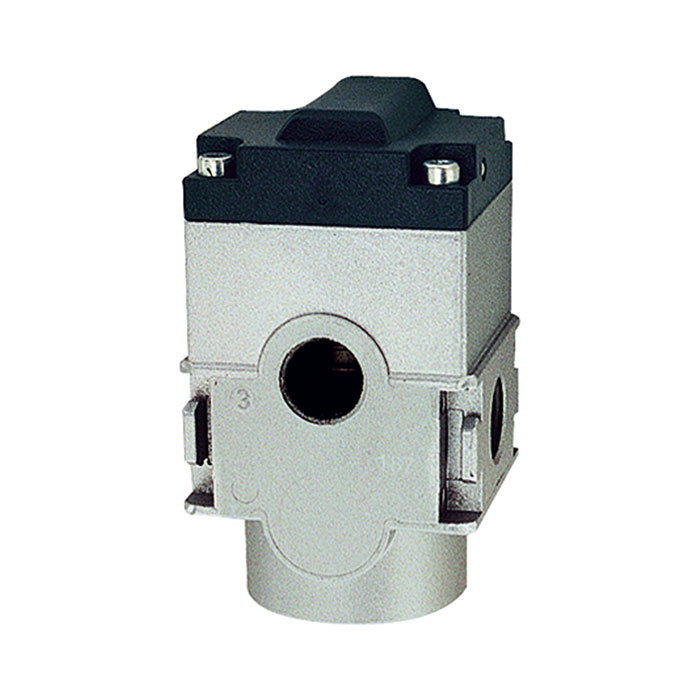

RIEGLER Start up valve »multifix-mini«, Size 0, G 1/4
Typennummer: A 06
EAN: 4047322123785
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Start-up valve "multifix-mini", BG 0, G 1/4, inlet pressure min. 2.5 bar, max. 16 bar, media ambient temp. max. 60 °C
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 2250 l/min |
| BG | 0 |
| A | 45 mm |
| B | 77.5 mm |
| C | 48.5 mm |
| D | 29 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
