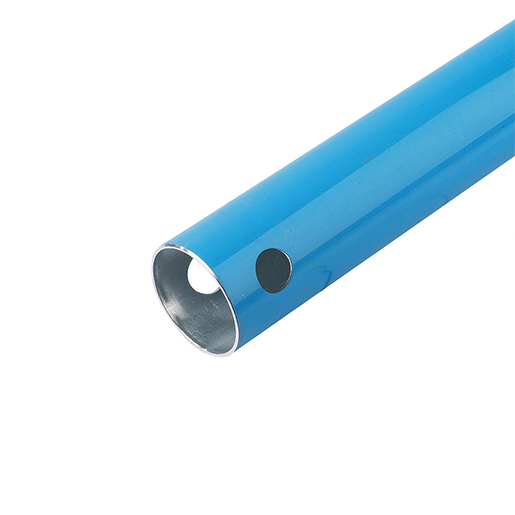

Transair Legris aluminum pipe blue Ø 63, length: 3 m (4 pieces = 12 m)

Main cable aluminum blue Ø 63 mm × 3 m - ISO 8573 certified

Calibrated Transair Aluminum conduit made of aluminum 6063 T5 (ASTM B241) in blue, Ø 63 mm, 3 m length. Lightweight, robust and corrosion-resistant - for main lines and ring lines with high volume flow in industrial plants and the aerospace industry.

Technical data

- Material: Aluminum 6063 T5 according to ASTM B241
- Max. Operating pressure: 16 bar (-20°C to +45°C), 13 bar (-20°C to +60°C), 7 bar (-20°C to +85°C)
- Vacuum level: 99% (10 mbar absolute pressure)
- Operating temperature: -20°C to 85°C
- Coating: Qualicoat-certified powder coating
- Seals: NBR
- Certifications: TÜV Rheinland, AD-2000, PED 2014/68/EU, ASME B31.3
- Suitable media: oil-free and oil-containing compressed air, industrial vacuum, nitrogen (99.99% purity), inert gases

Application areas

Transair Ø 63 pipes supply entire production halls: Ring lines in automotive production, main lines in cement plants for silo inertization with nitrogen, and central compressed air distribution in shipyards and mining operations. Reduces CO₂ emissions by 80 % compared to steel pipes.

Advantages

- 80 % less CO₂ than steel pipes - environmentally responsible and sustainable
- 100 % recyclable - guaranteed silicone-free and oil-free
- 20 % higher flow rate than conventional steel pipe with significantly lower weight
- Can be seamlessly integrated into existing copper and steel pipe installations
- ISO 8573 class 1-1-1 - compressed air quality for sensitive processes
- Quick installation without welding, Soldering or tapping
- 10-year guarantee - TÜV Rheinland certified
