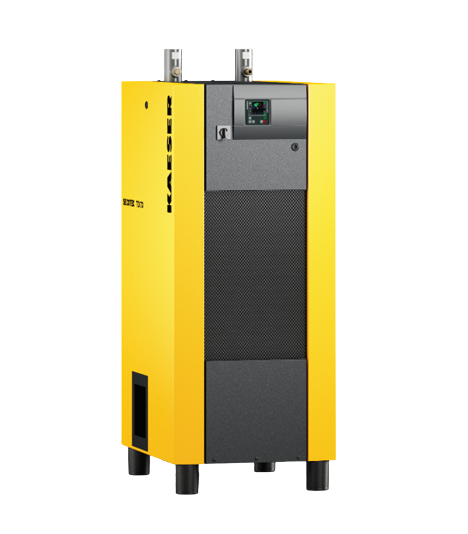

KAESER Energy-saving refrigeration dryer model TD 52
Energiespar-Kältetrockner mit einem stabilen Drucktaupunkt von +3 °C (Klasse 4 nach ISO 8573-1). Einsatz in einer Umgebungstemperatur bis max. +50°C.
Einsparung: Einsparpotenzial 9.467 bis 14.278 € in 10 Jahren
Klimaschutz: Einsparpotenzial 28,4 bis 42,8 to CO2 in 10 Jahren
Die Baureihe TD 52 ersetzt die Baureihe TD 51 (1.7986.50010)
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
The new SECOTEC refrigeration dryer series TD in industrial quality complements the existing series from September 222. The new series is characterized by a space-saving and highly efficient SECOPACK LS latent heat storage unit and the SIGMA CONTROL SMART controller with comprehensive system monitoring and optimum network connection (TCP).
YOUR ADVANTAGES
- low energy costs
- high operational reliability
- stable pressure dew point
- long service life
- future-proof refrigerant
- high-quality control
- optional network connection
- small footprint
| Volume flow (m³/min) | 5,10 |
| Pressure dew point (°C) | 3 |
| Pressure loss (bar) | 0,12 |
| Electrical power consumption at 100% Vol. (kW) | 0,61 |
| Electrical power consumption at 50% Vol. (kW) | 0,31 |
| Electrical power consumption at 10% Vol. (kW) | 0,09 |
| Min. overpressure (bar) | 3 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | 3 |
| Max. Ambient temperature (°C) | 50 |
| Max. Compressed air inlet temperature (°C) | 60 |
| Width (mm) | 588 |
| Depth (mm) | 797 |
| Height (mm) | 1515 |
| Weight (kg) | 132 |
| Compressed air connection | G 1½ |
| Condensate drain connection | G 1/4 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,67 |
| CO2 equivalent (tonnes) | 0,42 |
| Global warming potential GWP | 631 |
| Energy-saving control | Kältespeicher |
