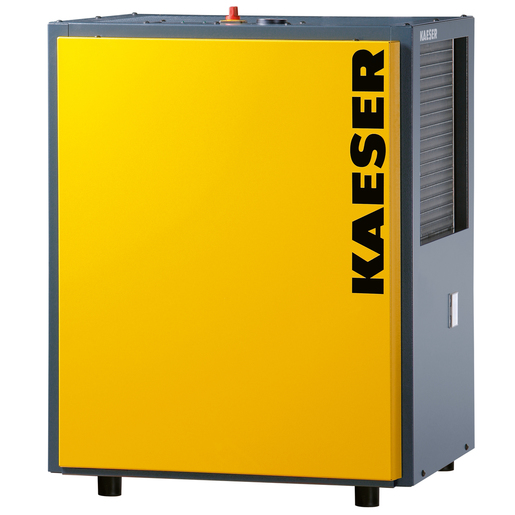

KAESER Energy-saving refrigeration dryer model TC 36 SECOTEC
Sparsamer Kältetrockner zum Trocknen von Druckluft bis zu einem Drucktaupunkt vom 3 °C. Einsatz in einer Umgebungstemperatur bis +43°C. Großer Kondensatabscheider und elektronischer Kondensatableiter ECO-DRAIN
Artikel-Nr.: 1.2466.0 wurde ersetzt durch Artiktel-Nr. : 1.2466.1
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Sensational savings experts with a stable pressure dew point
SECOTEC refrigeration dryers (compressed air dryers) from the TA-TE series dry compressed air down to a pressure dew point of 3 °C, thanks to highly efficient accumulator control, adapted to demand and therefore particularly economical. A generously dimensioned cold accumulator ensures gentle operation and a stable pressure dew point.
- Enormous savings potential in partial load operation and during work breaks
- Particularly robust and low-maintenance system design
Your advantages
Energy saving: Thanks to energy-saving control, excess cooling capacity can be temporarily stored in the thermal store during partial load operation and retrieved for drying without consuming electricity.
Lasting reliability: The high-quality refrigeration circuit of the SECOTEC refrigeration dryers allows safe use up to an ambient temperature of +43 °C. The large condensate separator and the ECO-DRAIN electronic condensate drain ensure reliable removal of condensate in all load phases. The electrical design complies with the EN 624-1 standard
Ingeniously service-friendly: The housing design, optimized for easy access to all parts, significantly reduces labour costs during maintenance and inspection work.
Optional version with potential-free contacts available
| Volume flow (m³/min) | 3,90 |
| Pressure dew point (°C) | 3 |
| Pressure loss (bar) | 0,17 |
| Electrical power consumption at 100% Vol. (kW) | 0,89 |
| Electrical power consumption at 50% Vol. (kW) | 0,41 |
| Electrical power consumption at 10% Vol. (kW) | 0,17 |
| Min. overpressure (bar) | 3 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | 3 |
| Max. Ambient temperature (°C) | 43 |
| Max. Compressed air inlet temperature (°C) | 55 |
| Width (mm) | 764 |
| Depth (mm) | 660 |
| Height (mm) | 1009 |
| Weight (kg) | 170 |
| Compressed air connection | G 1 1/4 |
| Condensate drain connection | G 1/4 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 1,0 |
| CO2 equivalent (tonnes) | 0,63 |
| Global warming potential GWP | 631 |
| Energy-saving control | Kältespeicher |
