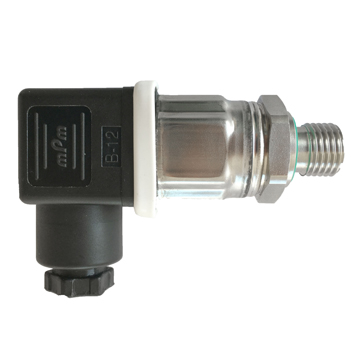

CS INSTRUMENTS Standard pressure probe CS 16 accuracy < 1% from 0-16 bar 1/4' connection, incl. plug nipple
Der Standard Drucksensor ermöglicht präzise Druckmessungen bis zu 16 bar. Er bietet zuverlässige Ergebnisse und ist ideal für industrielle Anwendungen. Vertrauen Sie auf die Qualität des CS 16, um Ihre Drucküberwachung effizient zu gestalten.
CS Instruments
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany.
Standard pressure sensor CS 16 - accuracy < 1 %
The CS 16 standard pressure sensor is a high-precision measuring device that has been specially developed for monitoring pressure ratios in the range from 0 to 16 bar. With a maximum deviation of only 1 %, the CS 16 guarantees reliable and consistent pressure measurements. For applications where maximum accuracy is required, we offer a special version that allows a maximum deviation of 0.5 %.
The pressure sensor has an output signal of 4...20 mA and uses the proven 2-wire technology, which enables easy integration into your existing systems. Thanks to the flexible power supply of 8...30 VDC, the CS 10 is versatile and can be easily adapted to different requirements.
This standard pressure sensor is ideal for industrial applications where precise pressure measurements are crucial. Rely on FILCOM's high quality and expertise to efficiently optimize your measurement processes. The CS 16 is the perfect solution to meet your pressure monitoring and control requirements.
| Range | 0...16 bar |
| Accuracy | ±1% |
| Long-term stability | ±0.2% FS/ Jahr |
| Temperature range (°C) | -40...125 |
| Protection class | IP 65 |
| Power supply | 8...30 VDC |
| Components with media contact | 316 L, 304 |
| Process connection | G 1/4 |
