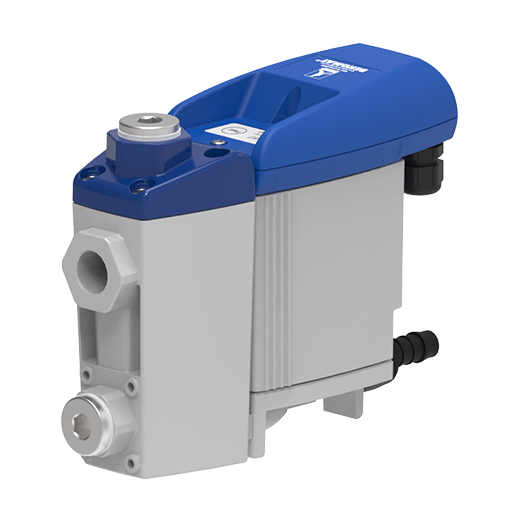

BEKO Condensate drain BEKOMAT 33 U, 230 Vac
Kondensatableiter BEKOMAT 33U CO von Beko, Neugerät
Art.-Nr.: KA33EC0A0 und 4012871 wurde ersetzt durch Art.-Nr.: 4024395Zuverlässiger Kondensatablauf mit BEKOMAT Kondensatableiter!
- baugleich mit Elmag, Aircraft, Schneider Airsystems
BEKO Technologies
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES.
BEKO BEKOMAT 33U CO condensate drain 4024395
The BEKOMAT® condensate drains work with a capacitive sensor. The electronic level control of the BEKOMAT® guarantees that the condensate is drained without any loss of compressed air and minimizes energy consumption. For this reason, the BEKOMAT® often pays for itself within six months compared to devices with time-controlled drain valves. This not only saves energy and therefore costs, but also CO2 emissions.
Thanks to the integrated and manufacturer-tested ServiceUnit, all wearing parts in the corrosion-resistant aluminum housing can be replaced with just one handle. No tools are required. The condensate collection container always remains in the compressed air network.
The BEKOMAT benefits at a glance:
- No unnecessary compressed air losses
- Discharge according to the amount of condensate produced- Sensor detects every type of condensate
- Insensitive to dirt
- Low maintenance
- Fully automatic monitoring
| Max. Compressor capacity (m³/min) | 10 |
| Max. Refrigeration dryer capacity (m³/min) | 20 |
| Max. Filter capacity (m³/min) | 100 |
| Min. / max. operating pressure (bar) | 0,8 ... 16 [optional: 1,2 … 16] |
| Housing (material) | Aluminium + Kunststoff, glasfaserverstärkt |
| Ambient temperature (°C) | +1 … +60 [gemäß Ausführung: +1 … +70] |
| Weight (kg) | 1,65 |
| Condensate feed | 3 x G½ (innen) [optional: NPT-Gewinde] |
| Condensate drain | 1 x G½; Schlauchtülle Ø = 13mm (innen) |
| Operating voltage | 95 … 240 VAC ±10% (50 … 60 Hz) / 100 … 125 VDC ±10% oder 24 … 48 VAC ±10% (50 … 60 Hz) / 18 … 72 VDC ±10% |
| Power consumption (VA (W)) | 0,6…3 |
| Protection class (IP) | 67 |
| Wire cross-section (mains connection) (mm²) | 0,75 ... 2,5 (AWG 14 ... 20) |
| Condensate | ölhaltiges Kondensat |
| Contact load | max. AC 250 V , DC 30 V / 1A ; min. DC 5V / 10 mA |
