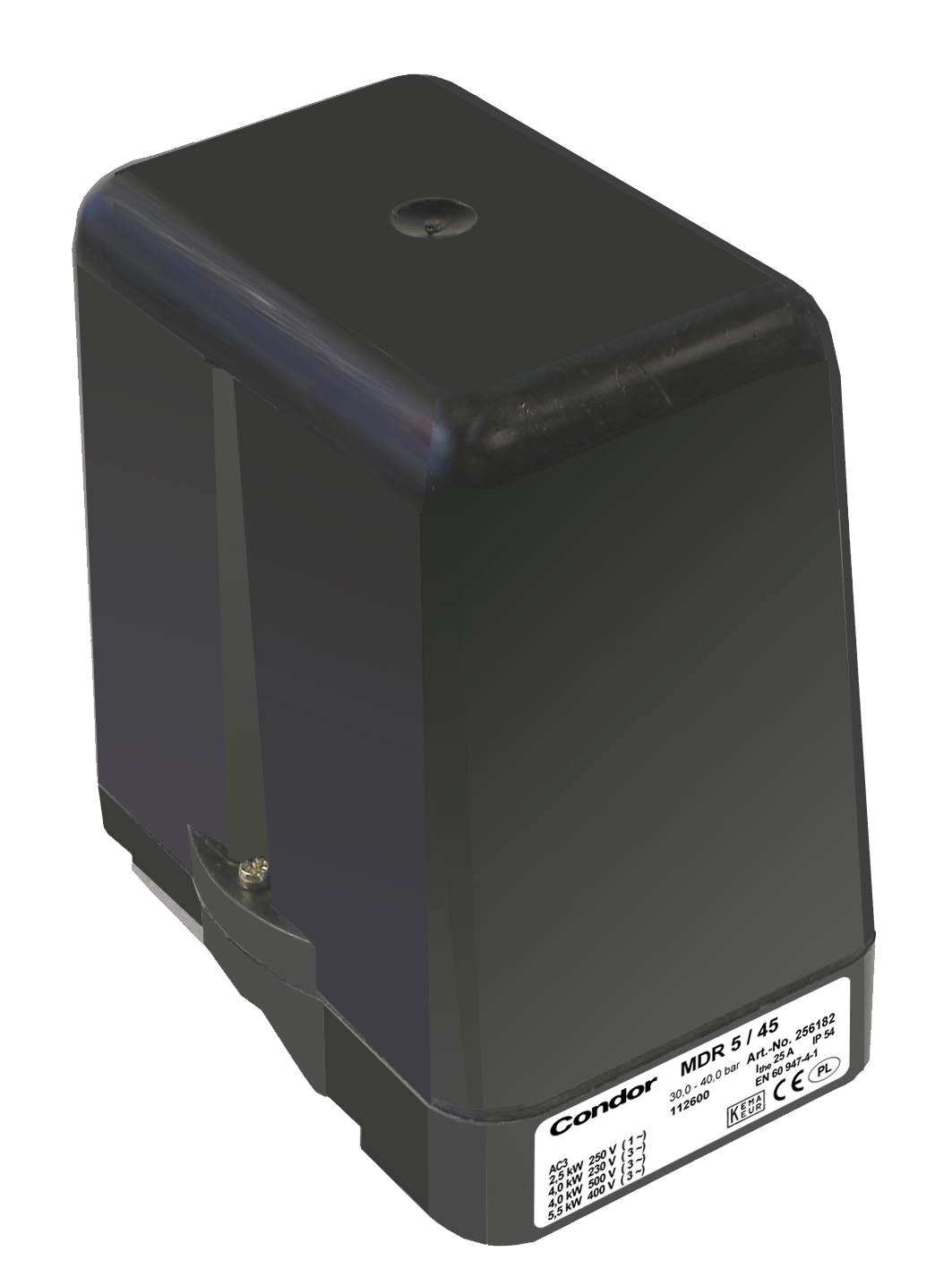

Condor Pressure Switch MDR 5/45 13-45 bar G 1/2" Alu
Condor MDR 5/45 bar, Spannung Drehstrom 400 V
Druckluft / Wasser: Druckschalter Kompressor / Druckschalter Pumpe
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 5/45 bar 256182
Drehstromausführung
Schaltvermögen 5,5
Druckbereich 13,00 - 45,00 bar
3-polig (Öffner)
nach EN 60947
Technische Änderungen des Herstellers vorbehalten!
Für diesen Druckschalter ist nur die Verwendung des Entlastungsventils EV5-H möglich (siehe Zubehör)!
Druckschaltertyp: KAA BAAA 300 A400 XXX XXsiehe weitere Informationen: siehe Technische Daten (PDF 404 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen, Hauben für die nachträgliche Montage siehe unter "Zubehör".
| Thread / connection | G 1/2" Alu |
| Protection class | IP 54 |
| Motor switching capacity (KW) | 5,5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Drehstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 400 V |
| Contact function | 3-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 820 |
| Pressure range (bar) | 13-45 |
| Model range - Pressure switch | MDR 5 |
| Ein / Aus Schaltknopf | Nein |
Product variants
| Product | Price | ||
|---|---|---|---|

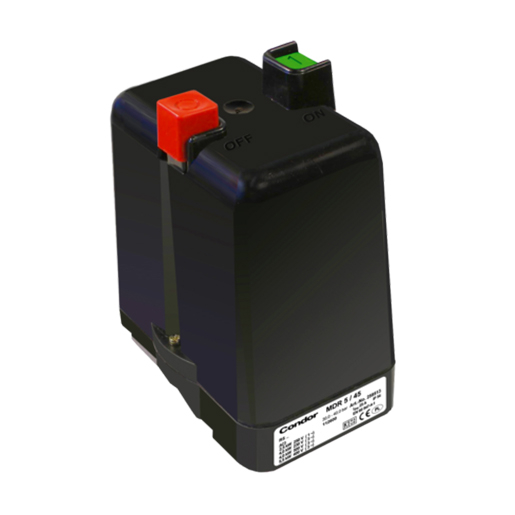

![[258513] Condor Pressure Switch MDR 5/45-K 13-45 bar G 1/2" Alu](/web/image/product.template/218175/image_128/%5B258513%5D%20Condor%20Pressure%20Switch%20MDR%205-45-K%2013-45%20bar%20G%201-2%22%20Alu?unique=9afd139)
|
Condor MDR 5/45 bar, Spannung Drehstrom 400 V |
206.40 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[201915] Condor Unloader valve EV 5H with screw connection for 6 mm plastic or copper discharge tube, screw connection for vent port (for MDR-5/45 bar types)](/web/image/product.template/95977/image_128/%5B201915%5D%20Condor%20Unloader%20valve%20EV%205H%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube%2C%20screw%20connection%20for%20vent%20port%20%28for%20MDR-5-45%20bar%20types%29?unique=1e5111e)
|
Entlastungsventil EV 5-H für Condor Condor MDR 5/45 Druckschalter |
33.40 € | |
![[202028] Condor Thermal, 3-pole overload relay R5 0,86 - 1,50 A](/web/image/product.template/226368/image_128/%5B202028%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%200%2C86%20-%201%2C50%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais R 5 / 1,5 für Condor MDR 5 Druckschalter |
65.10 € | |
![[202035] Condor Thermal, 3-pole overload relay R5 1,50 - 2,45 A](/web/image/product.template/226369/image_128/%5B202035%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%201%2C50%20-%202%2C45%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais R 5 / 2,45 für Condor MDR 5 Druckschalter |
65.10 € | |
![[202042] Condor Thermal, 3-pole overload relay R5 2,40 - 4,20 A](/web/image/product.template/226371/image_128/%5B202042%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%202%2C40%20-%204%2C20%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais R 5 / 4,2 für Condor MDR 5 Druckschalter |
65.10 € | |
![[202059] Condor Thermal, 3-pole overload relay R5 4,00 - 7,00 A](/web/image/product.template/226372/image_128/%5B202059%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%204%2C00%20-%207%2C00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais R 5 / 7,0 für Condor MDR 5 Druckschalter |
65.10 € | |
![[202066] Condor Thermal, 3-pole overload relay R5 6,10 - 10,3 A](/web/image/product.template/226373/image_128/%5B202066%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%206%2C10%20-%2010%2C3%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais R 5 / 10,3 für Condor MDR 5 Druckschalter |
67.70 € | |
![[202073] Condor Thermal, 3-pole overload relay R5 9,00 - 14,0 A](/web/image/product.template/226374/image_128/%5B202073%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%209%2C00%20-%2014%2C0%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais R 5 / 14,0 für Condor MDR 5 Druckschalter |
84.80 € | |
![[202080] Condor Thermal, 3-pole overload relay R5 11,0 - 18,0 A](/web/image/product.template/226375/image_128/%5B202080%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%2011%2C0%20-%2018%2C0%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais R 5 / 18,0 für Condor MDR 5 Druckschalter |
84.80 € | |
![[230045] Condor Mounting bracket](/web/image/product.template/95986/image_128/%5B230045%5D%20Condor%20Mounting%20bracket?unique=1e5111e)
|
Condor Montagewinkel für Condor Druckschalter MDR 5 und MDR 53 |
11.60 € | |
![[269496] Condor Grommet WN M20 for cable gland MDR 5](/web/image/product.template/95980/image_128/%5B269496%5D%20Condor%20Grommet%20WN%20M20%20for%20cable%20gland%20MDR%205?unique=1e5111e)
|
Condor Würgenippel für Condor Kabelverschraubungen für Condor Druckschalter MDR 5 und MDR 53 |
4.30 € | |
![[269502] Condor Screw plug M20](/web/image/product.template/95981/image_128/%5B269502%5D%20Condor%20Screw%20plug%20M20?unique=1e5111e)
|
Condor Verschlussschraube M 20 für Condor Druckschalter MDR 5 und MDR 53 |
2.30 € | |
![[269519] Condor Cable gland M20 L with strain relief, clamping range 10-14 mm](/web/image/product.template/95984/image_128/%5B269519%5D%20Condor%20Cable%20gland%20M20%20L%20with%20strain%20relief%2C%20clamping%20range%2010-14%20mm?unique=1e5111e)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
10.20 € | |
![[269526] Condor Cable gland M20 LK with strain relief and cable support, clamping range 10-14 mm](/web/image/product.template/95985/image_128/%5B269526%5D%20Condor%20Cable%20gland%20M20%20LK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%2010-14%20mm?unique=1e5111e)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
10.50 € | |
![[269533] Condor Cable gland M20 Z with strain relief, clamping range 6-12 mm](/web/image/product.template/95982/image_128/%5B269533%5D%20Condor%20Cable%20gland%20M20%20Z%20with%20strain%20relief%2C%20clamping%20range%206-12%20mm?unique=1e5111e)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
10.20 € | |
![[269540] Condor Cable gland M20 ZK with strain relief and cable support, clamping range 6-12 mm](/web/image/product.template/95983/image_128/%5B269540%5D%20Condor%20Cable%20gland%20M20%20ZK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%206-12%20mm?unique=1e5111e)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
10.50 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[230052] Condor Cover H5 without On/Off push buttons for MDR 5](/web/image/product.template/95987/image_128/%5B230052%5D%20Condor%20Cover%20H5%20without%20On-Off%20push%20buttons%20for%20MDR%205?unique=1e5111e)
|
Condor Haube für Condor Steuerdruckschalter MDR 5 und MDR 53 |
15.20 € | |
