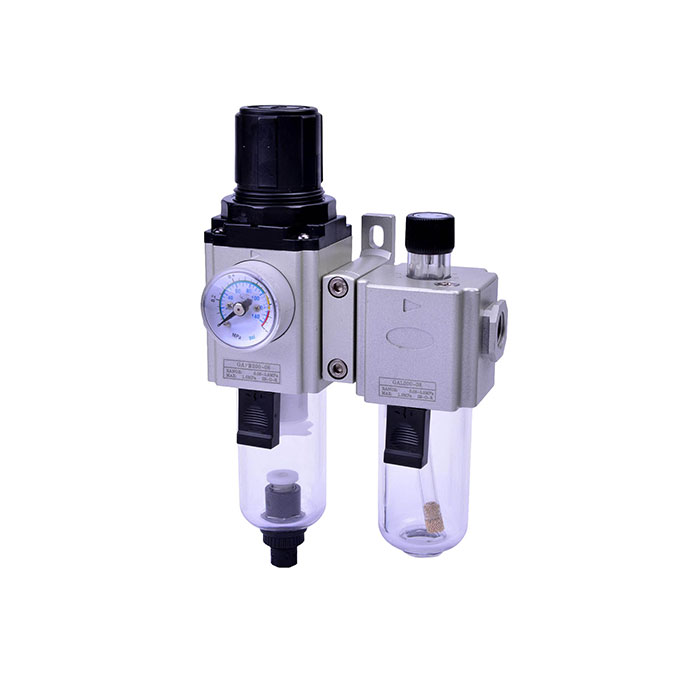

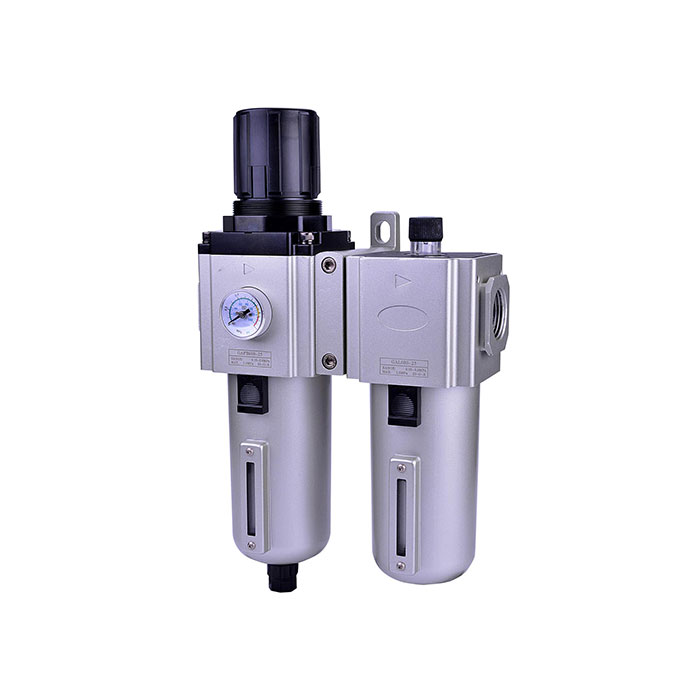

RIEGLER Service unit 2-part »GA«, Metal container, 5 µm, Size 600, G 1
Type number: GACL 55 A
EAN: 4047322667012
Wartungseinheit 2-tlg. »GA« mit Metallbehälter u. Sichtrohr, 5 µm, BG 600, G 1, PE max. 10 bar, Regelber. 1,5 - 9 bar, Ablass VA
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Dropper attachment | Messing/POM |
| Spring cover | POM |
| Thread | G 1 |
| Flow rate | 6000 l/min |
| Control range min. | 1.5 bar |
| Control range max. | 9 bar |
| Condensate drain | fully automatic |
| BG | 600 |
| A | 206 mm |
| B | 336.5 mm |
| C | 131.5 mm |
| D | 205 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
