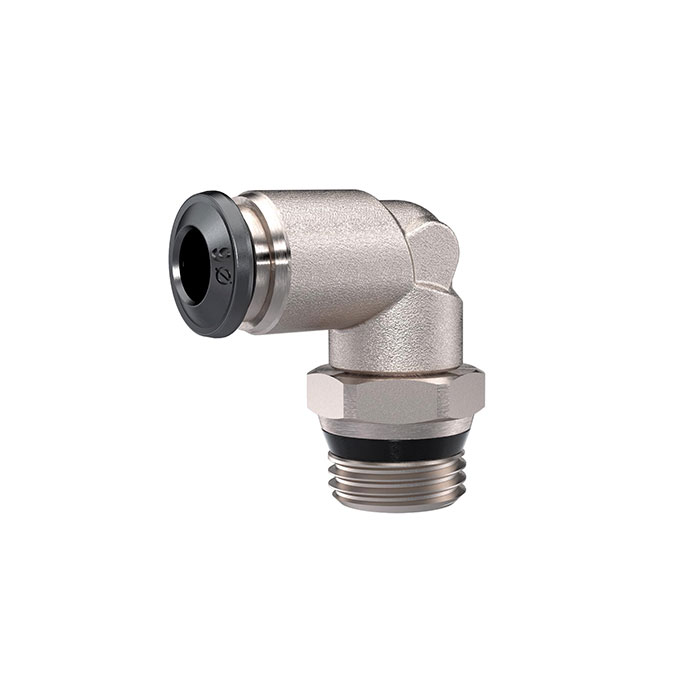

RIEGLER Male branch elbow »universal short« rotating 1/8, hose 6
Type number: WS186MSVUNI
EAN: 4047322608022
Winkelsteckverschraubung »universal short«, drehbar, 1/8, Schl-A-Ø 6, konisch dichtend, Arbeitsdruck -0,99 bis 20 bar, MS vern.
| Medium | Compressed air, water |
| Sealing material | NBR |
| Series | universal short |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 20 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, automotive, textile and packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | POM |
| Recommended hose | PA, PU, PTFE |
| Collet chuck | Edelstahl |
| Thread | G 1/8 |
| SW 1 | 11 mm |
| SW | 13 mm |
| for hose outer Ø | 6 mm |
| L1 | 21 mm |
| L2 | 21.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
