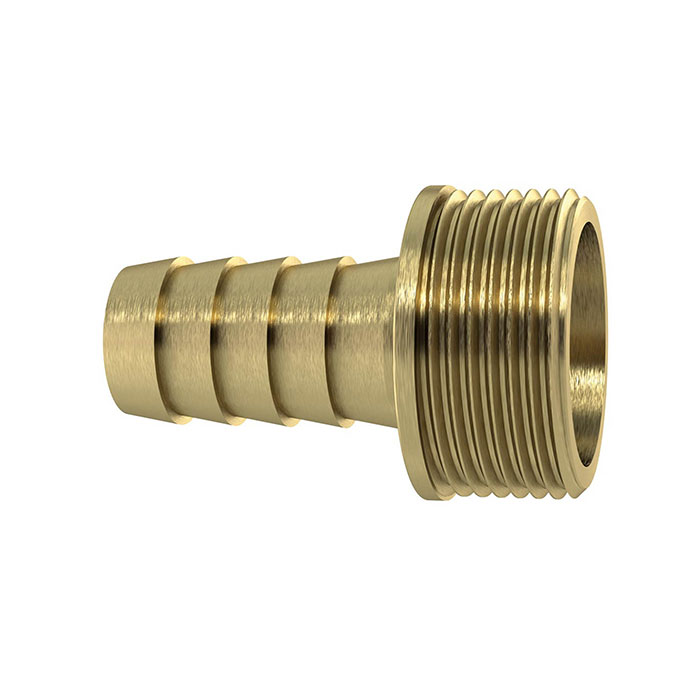

1/3 Tube fitting G1x19 taper seat, with collar, CH type, Brass
Typennummer: SV1019MS13CH
EAN: 4047322580564
1/3 Schlauchverschraubung, G 1 x 19 mm, flachdichtend, mit Bund, CH Ausführung, Messing blank
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Messing CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | G 1 |
| for hose | 19 mm |
| D | 33.2 mm |
| L1 | 45 mm |
| L2 | 29.5 mm |
| REACH SVHC1 Substance Name | Blei |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS konform |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Artikel 4, Absatz 1, Anhang 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | enthält SVHC Stoff |
| Share of SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Proportion of SVHC substance in SCIP | >= 0,1 % in w/w |
| Material identification | keine |
| Class name | FLEX |
