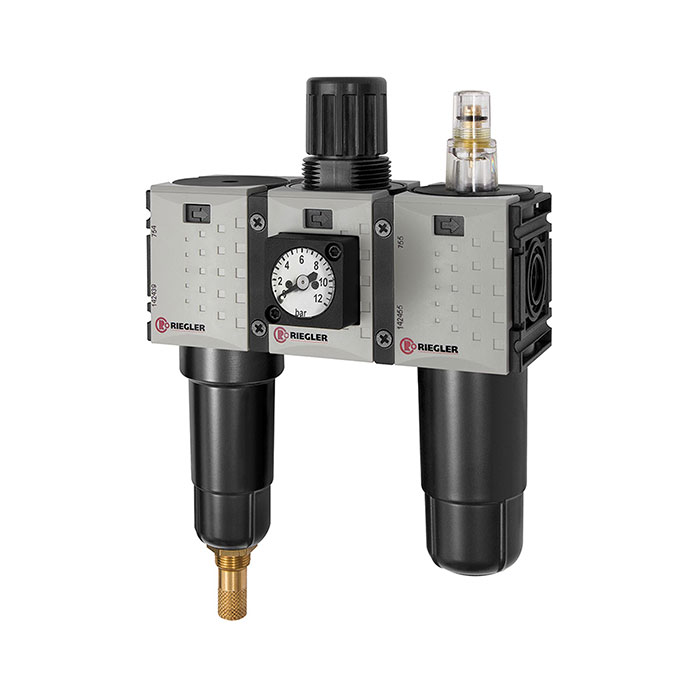

RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.5-8
Type number: FUM 633 M-8-KM
EAN: 4047322557405
Wartungseinheit 3-tlg. »FUTURA-mini«, Metallbehälter, Kompaktmano, BG 0, G 1/4, PE 1,5-12 bar, Regelbereich 0,5-8 bar, Ablass: VA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Metal container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 12 bar |
| BG | 0 |
| A | 129 mm |
| B | 196 mm |
| C | 63 mm |
| Class name | MAX |
